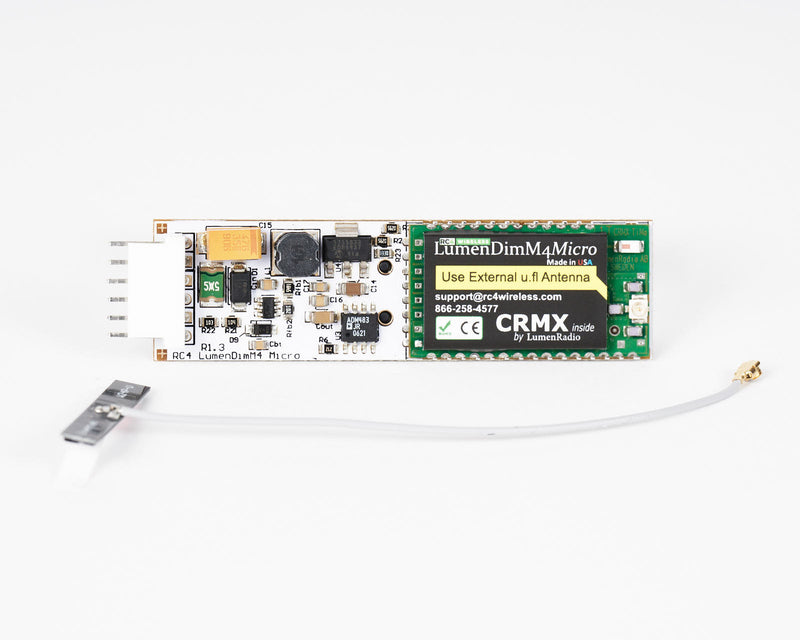

RC4 LumenDimM4micro Wireless DMX Dimmer (External Antenna Version)
The RC4 LumenDimM4micro is an ultra-compact 4-channel CRMX wireless DMX dimmer designed for LEDs, lamps, motors, servos and practical effects in costumes, props and miniature scenic applications.
The discreet unenclosed circuit-board assembly is specifically engineered for installations where space is extremely limited, allowing it to be hidden easily within costumes, fabrics, handheld props and scenic elements.
This version features an external antenna connection via a compact u.fl connector, allowing greater flexibility for antenna positioning and improved wireless performance where required.
Each External LumenDimM4micro includes one 2.4GHz u.fl antenna assembly.
Overview
Built around the LumenRadio CRMX / CRMX2 wireless platform, the LumenDimM4micro delivers exceptionally smooth 19-bit dimming, advanced RGB and RGBW colour control, wireless RDM support, servo motor positioning, tungsten lamp dimming, and the powerful RC4 Flkr Effects Engine™.
Despite its miniature size, the LumenDimM4micro offers the same advanced functionality found in larger RC4 Series 3 dimmers, making it ideal for professional film, theatre and live event applications.
Key Features
- Ultra-compact 4-channel CRMX wireless dimmer
- External antenna via compact u.fl connector
- 19-bit PWM dimming resolution (524,288 steps)
- RGB, RGBW and RGBA colour mixing support
- Wireless Hue/Saturation/Level (HSL) colour control
- RC4 Digital Persistence™ smooth fade technology
- RC4 Flkr Effects Engine™ for animated lighting effects
- RC4 ColorMatch™ colour calibration
- Wireless and wired RDM support
- Servo motor control support
- Tungsten lamp dimming capability
- Firmware updates via RC4 CodeLoader™
Advanced Colour Mixing
The four-channel output configuration is ideal for RGB, RGBW and RGBA LED systems. The integrated RC4 Wireless Hue/Saturation/Level (HSL) Controller maintains highly accurate colour consistency throughout the entire dimming range.
Using 19-bit dimming resolution, the system preserves precise primary colour ratios even at extremely low intensity levels, eliminating the visible stepping associated with conventional 8-bit DMX colour control.
Digital Persistence™
RC4 Digital Persistence™ recreates the natural fade behaviour of incandescent and halogen lamps when using LED sources. Carefully modelled thermal fade behaviour delivers smoother and more natural transitions, with selectable persistence settings emulating different lamp types and filament sizes.
Flkr Effects Engine™
Four independent dimmer outputs provide an ideal platform for the RC4 Wireless Flkr Effects Engine™. Designers can quickly create dynamic animated effects including firelight, sparks, flicker and welding effects directly from standard DMX control channels.
Unlike traditional preset effect generators, the patented RC4 Flkr Engine™ enables highly customised effect creation tailored to specific productions and applications.
Connectivity & Installation
Power and dimmer outputs are connected using a compact Amp MTA-100 6-pin connector. Each unit includes one connector with 15cm flying leads for installation.
Alternative connection options are available including mini screw terminals or direct solder connections for maximum compactness in custom builds.
Dimmers switch on the negative side of the circuit, making the unit ideal for common-anode LED systems and LED tape.
The RC4 mini-plug DMX port supports both DMX input and output operation using optional RC4 adaptor cables, including 3-pin and 5-pin XLR connectors.
Comprehensive RDM support includes E1.37 dimmer configuration extensions and live monitoring of voltage, temperature and current status data.
Wireless Performance
All RC4 LumenDim devices include a genuine LumenRadio TiMo CRMX2 radio module, ensuring compatibility with CRMX2, CRMX Classic, and Wireless Solution transmitters operating in G3, G4, G4S and G5 modes.
The external u.fl antenna connection allows flexible antenna positioning and improved RF performance in installations where signal optimisation is important.
An alternative version with an integrated onboard chip antenna is also available for applications where minimum size is the highest priority.
Film & Television Use
The LumenDimM4micro was selected by the lighting team at S&K Pictures for use on Shazam! Fury of the Gods (Shazam 2).
Technical Specifications
| Dimensions | 75mm × 20mm × 10mm |
| Weight | 0.40oz |
| Power Input | 5–35V DC |
| Outputs | 4 × low-voltage DC dimmers |
| Output Current | 6A peak / 3A continuous per channel |
| PWM Frequencies | 77Hz, 615Hz, 5kHz, 20kHz, 40kHz |
| Dimmer Curves | Linear, ISL, Non-Dim, Servo CW/CCW, AC Wave and more |
| DMX Support | USITT DMX512/1990 with E1.20 & E1.37 RDM support |
| Wireless Protocol | CRMX / CRMX2 compatible |
| Antenna | External antenna via u.fl connector |
