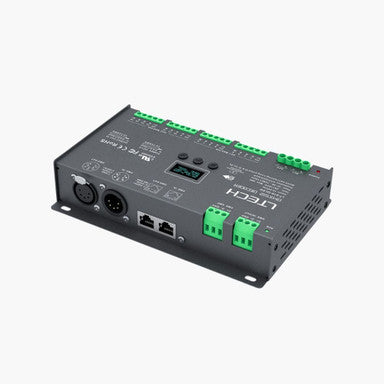

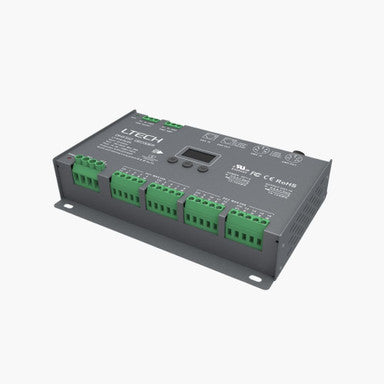

LTECH LT-916-OLED, 16 Channel 3A, 12-24V DC, DMX512 Decoder

Technical Specifications:

• Input signal: DMX512
• Voltage: 12V~24V DC
• Output: Constant Voltage
• Channels: 16
• Current: 3A ×16CH 48A Max
• Max output power: 576W/1152W(12V/24V)

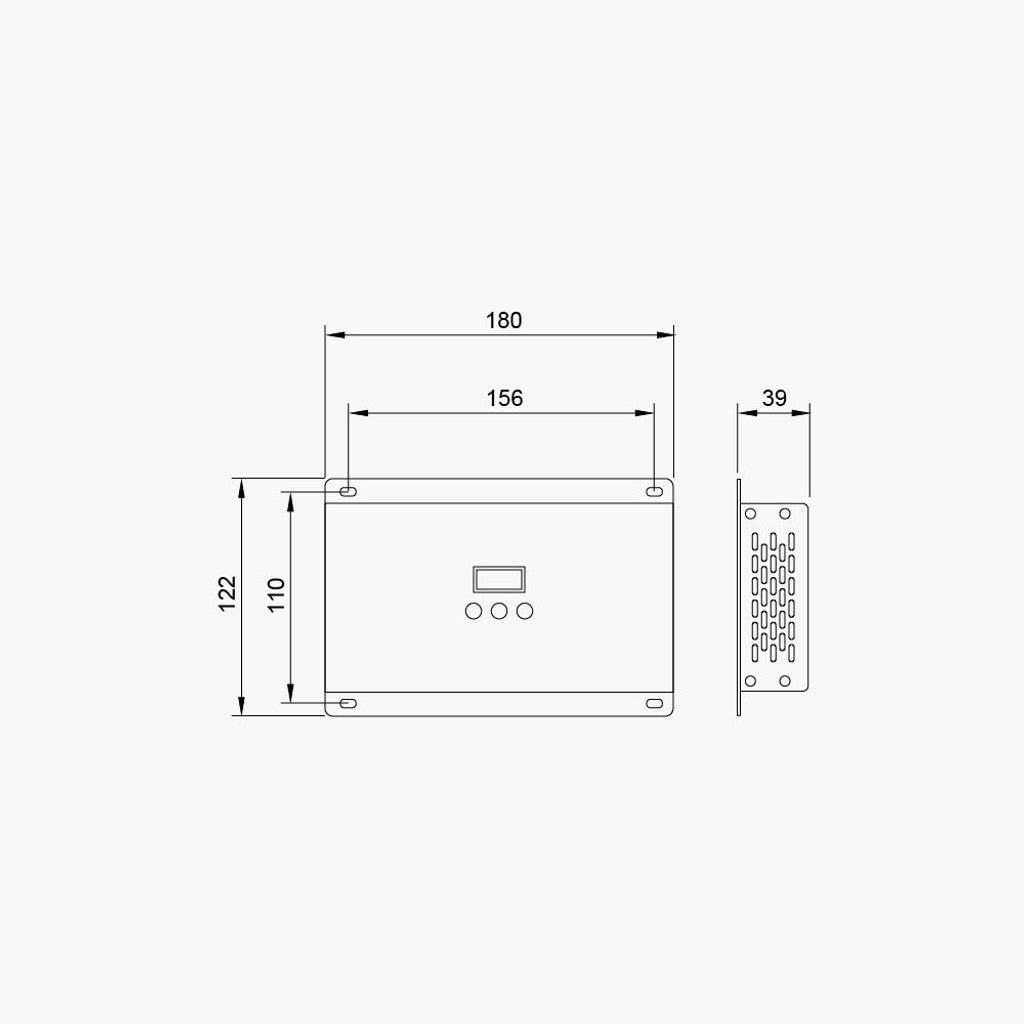

• Dimensions (mm): 180L x 122W x 39H
• Guarantee: 5 Years

This 16-channel DMX decoder is ideal for controlling large circuits of RGBCCT, RGBW, RGB, CCT adjustable, and single-color LED strips. It allows multiple DMX channels to be assigned to a single address, tripling power capacity per address while reducing the number of addresses needed.

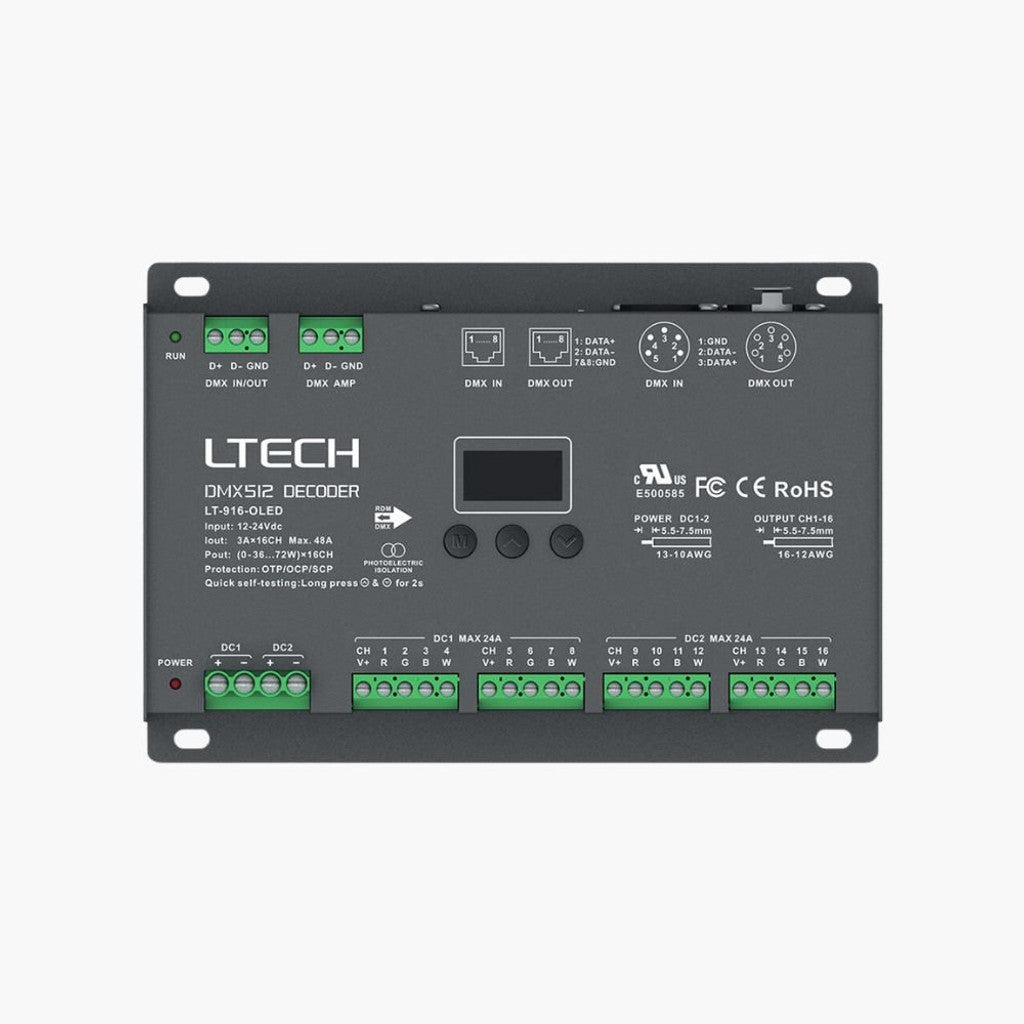

The decoder offers dimming options (standard, linear, LOG, custom 0.1-9.9) with adjustable 8-bit or 16-bit dimming increments. It features an OLED screen, touch buttons for setup, and DMX connections via XLR-5, RJ45, or screw terminals. Operating on a 12-24V DC circuit, it supports up to 576W of 12V or 1152W of 24V LED lighting.

A DMX control signal is required, and an LED driver is needed to power the LEDs. A built-in DMX signal amplifier ensures reliable operation.
