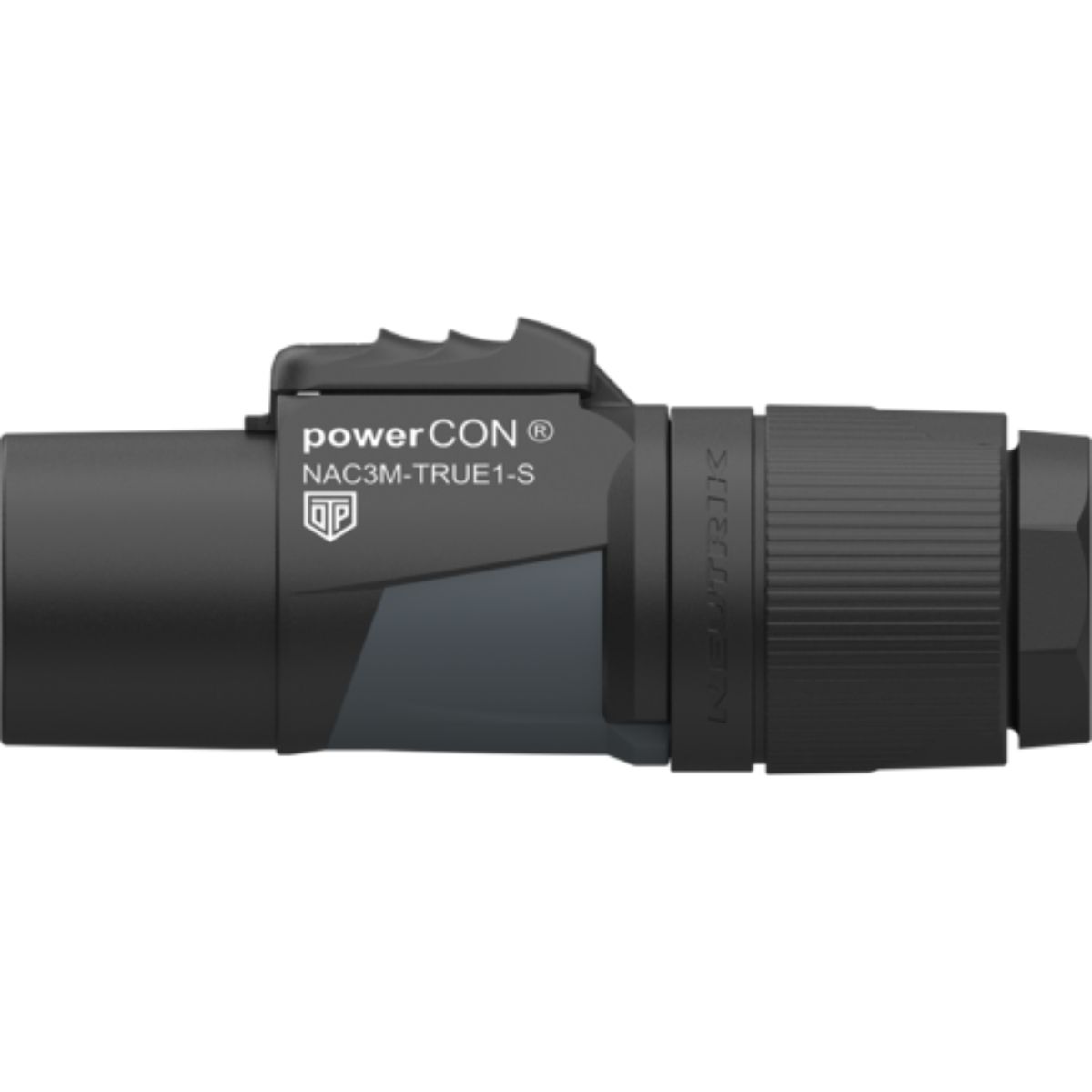

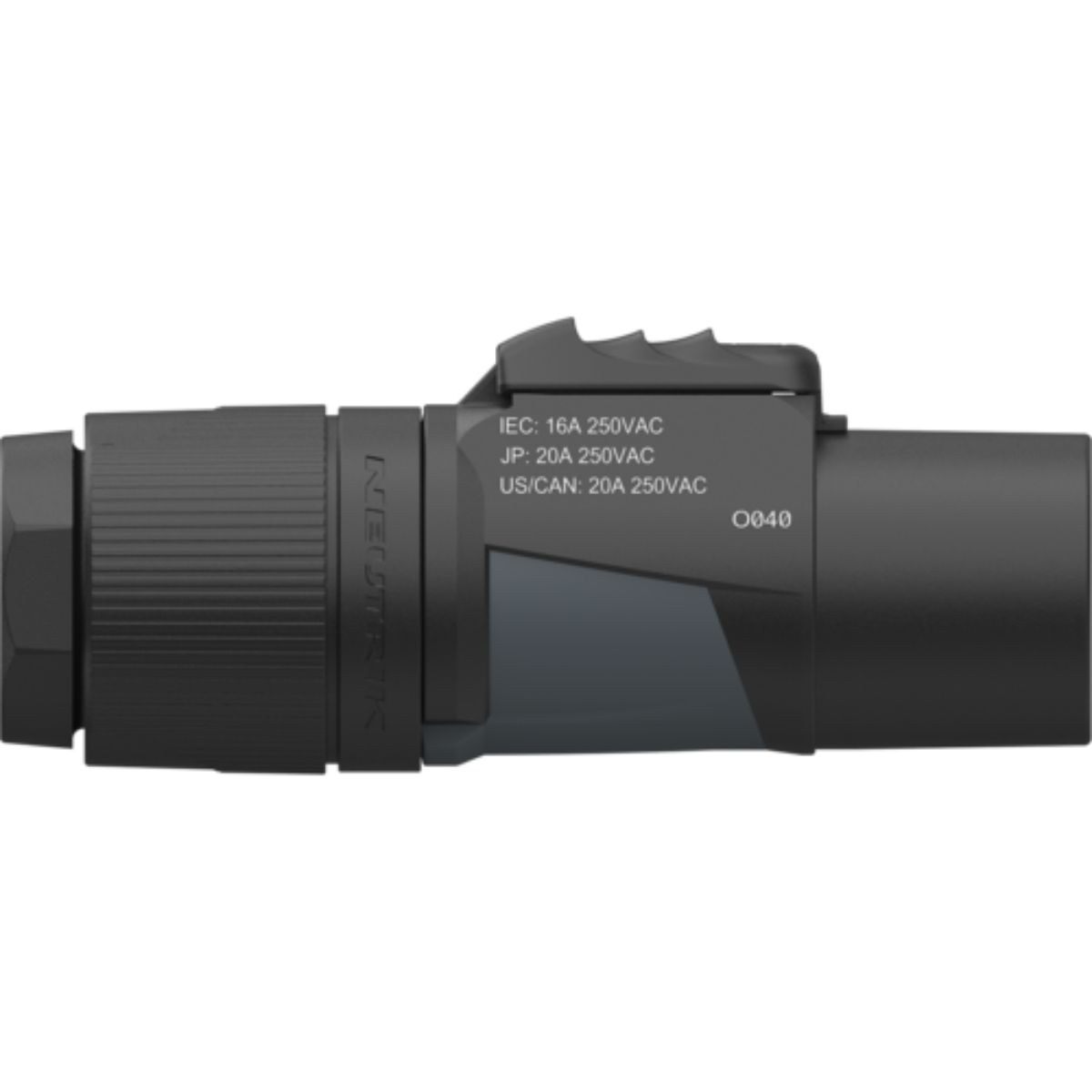

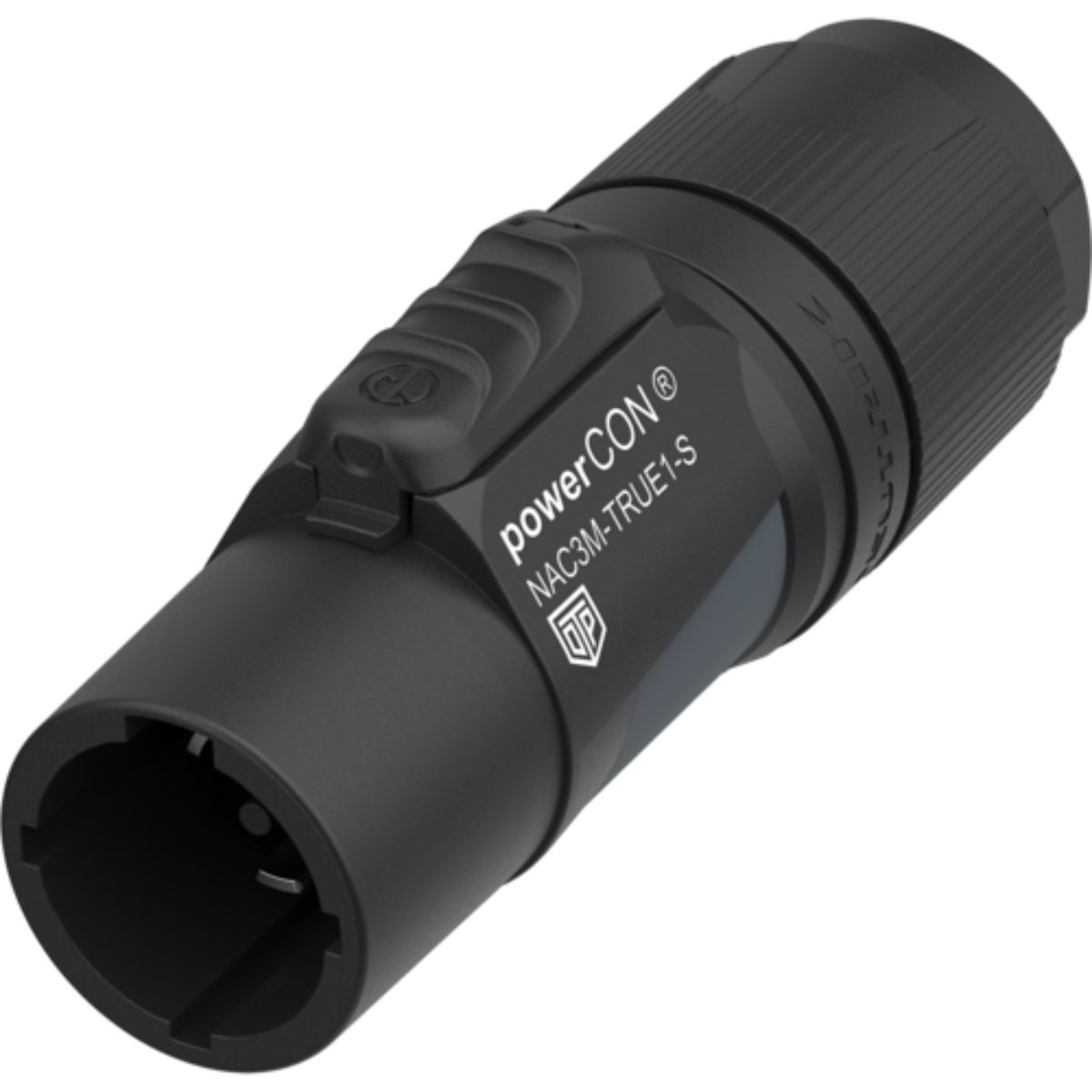

Neutrik NAC3M-TRUE1-S — Locking Male powerCON TRUE1 Connector (6–12 mm Cable)

Neutrik NAC3M-TRUE1-S — Locking Male powerCON TRUE1 Connector (6–12 mm Cable)

Regular price £7.22 GBP
Regular price Sale price £7.22 GBP
Sale Sold out
Taxes included.

In stock

Quantity

The Neutrik NAC3M-TRUE1-S delivers a rugged, locking solution for secure power connections in harsh environments. Featuring breaking capacity (CBC), this connector allows for live or under-load mating—perfect for demanding professional setups.

Constructed from UV-resistant, heavy-duty polyamide and equipped with Neutrik's signature locking bushing and strain relief, it ensures cable retention and durability. With ENEC, VDE, UL, and CSA certifications, it meets global safety and performance standards. Rated at IP65/IP67 (when mated or capped), this connector withstands weather, dust, and moisture.

Key Features

  • Breaking Capacity (CBC): Connect/disconnect live safely without damage
  • High Environmental Resistance: IP65/IP67 rated, UV-resistant material—ideal for rigorous outdoor use
  • Certifications: ENEC, VDE (IEC 60320-1), UL, CSA compliant for professional-grade reliability
  • Secure Cable Strain Relief: Locking bushing supports cable diameter of 6–12 mm (0.23–0.47 in)
  • Reliable Twist-Lock System: Durable, safe, and easy to operate :contentReference

Technical Specifications

  • Electrical: Contact resistance ≤ 2 mΩ; Dielectric strength 4 kV DC / 2.8 kV AC; Insulation resistance > 1 GΩ (IEC68-2-30)
  • Rating: 16 A / 250 V AC (EU); 20 A / 250 V AC (UL/CSA)
  • Contacts: 2 + PE; Cable range: 6–12 mm; Wire size: 1.5–2.5 mm² / 14 AWG; Lifetime > 5000 mating cycles
  • Materials: Shell & insert: Polyamide (PA 66), Strain relief: Polyketon, Contacts: copper alloy with 2 μm Ag plating
  • Environmental: UL94 V-0 flame rating; Operating temp: -30°C to +80°C (IEC 61984); UV-resistant material (F1 rating)Why It Matters
  • Safe live handling via breaking capacity makes it ideal for field/live event applications.
  • Exceptional durability ensures dependable performance in tough weather or industrial conditions.
  • Broad certification coverage enables global deployment with confidence.

In the Box

  • 1 × Neutrik NAC3M-TRUE1-S Locking Male Connector

Download Technical Documentation

📄 Access datasheets, engineering drawings, and certificates on Neutrik’s official site
