Instagrid LINK 36 230V IP54 – Intelligent Power Distributor

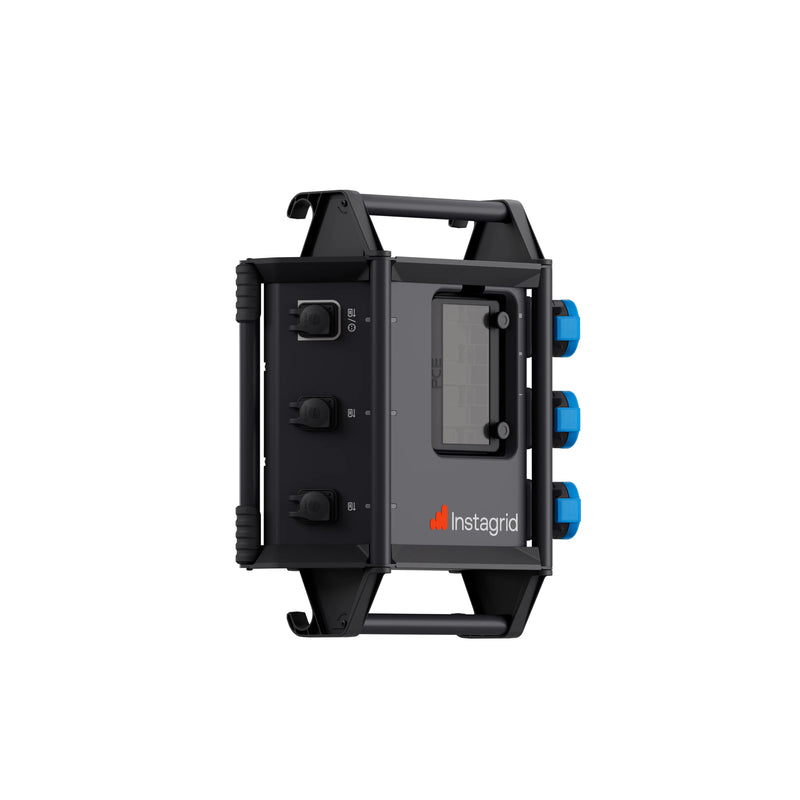

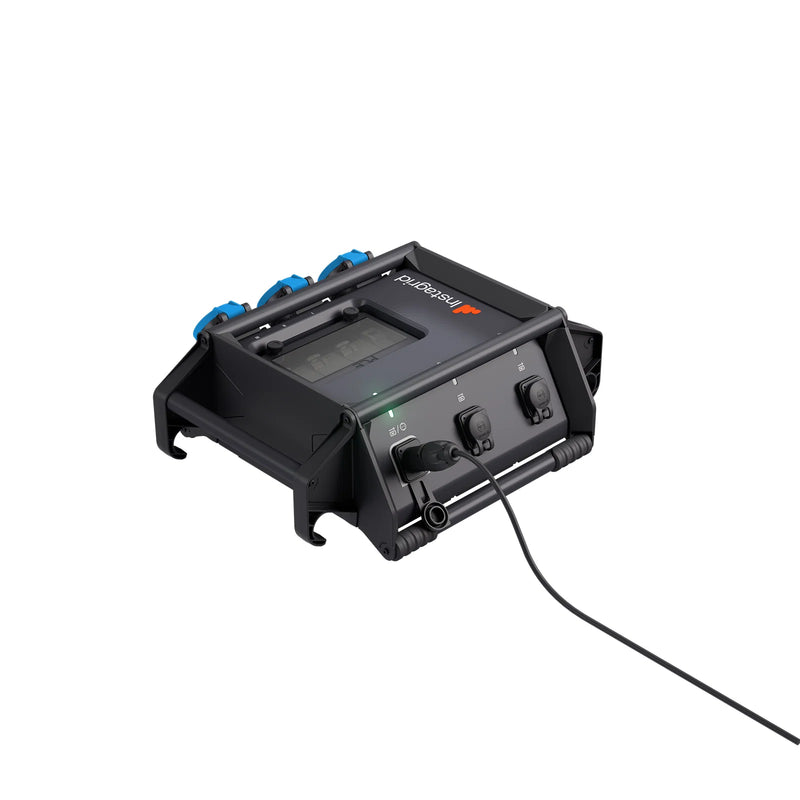

The Instagrid LINK 36 is a compact, intelligent power distributor designed to expand the capabilities of the Instagrid ONE portable power system. It allows multiple power sources and devices to be connected together, providing increased runtime, power distribution and continuous backup power for demanding professional applications.

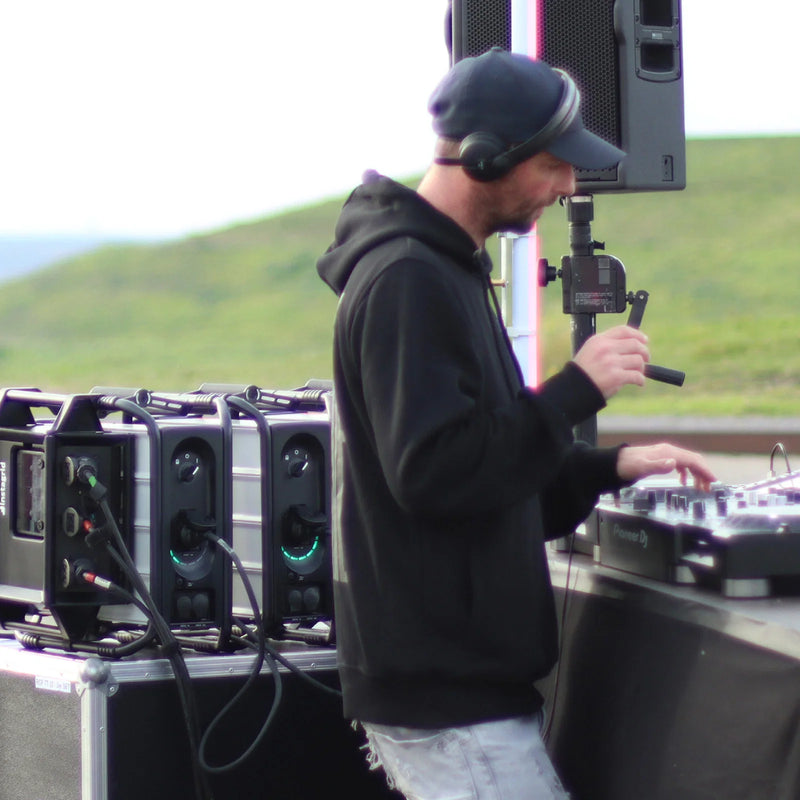

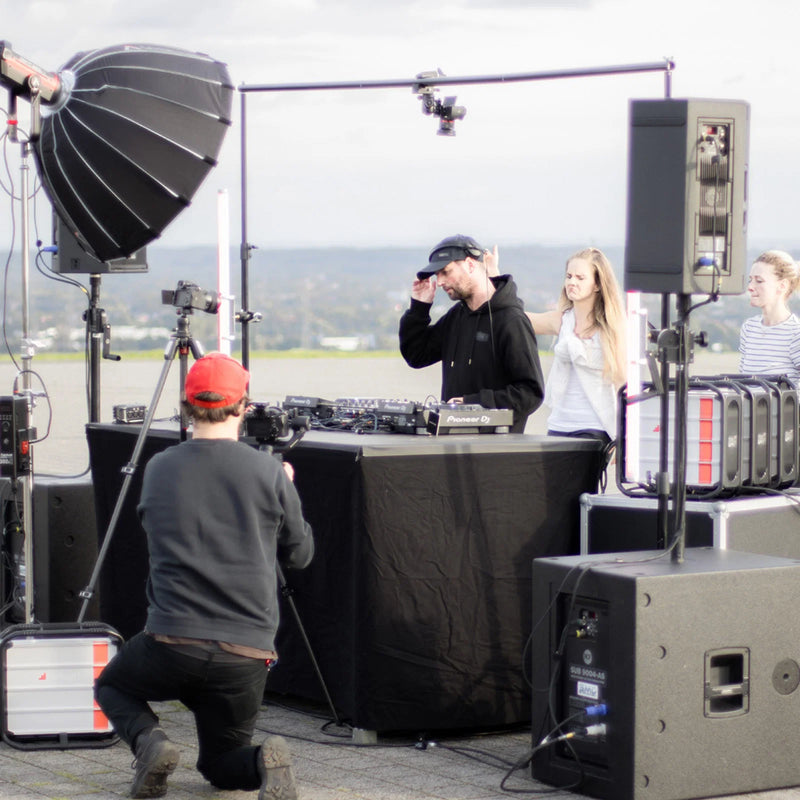

Designed for theatre, live events, film, broadcast and mobile production, Instagrid LINK can connect up to three Instagrid ONE units in Island Mode, allowing you to significantly increase the available energy capacity for longer off-grid operation.
For applications where uninterrupted power is essential, Continuous Power Mode allows LINK to switch automatically between mains and battery power in less than 20 milliseconds, helping keep connected equipment operating through a loss of mains supply.
Connect Multiple Instagrid ONE Units

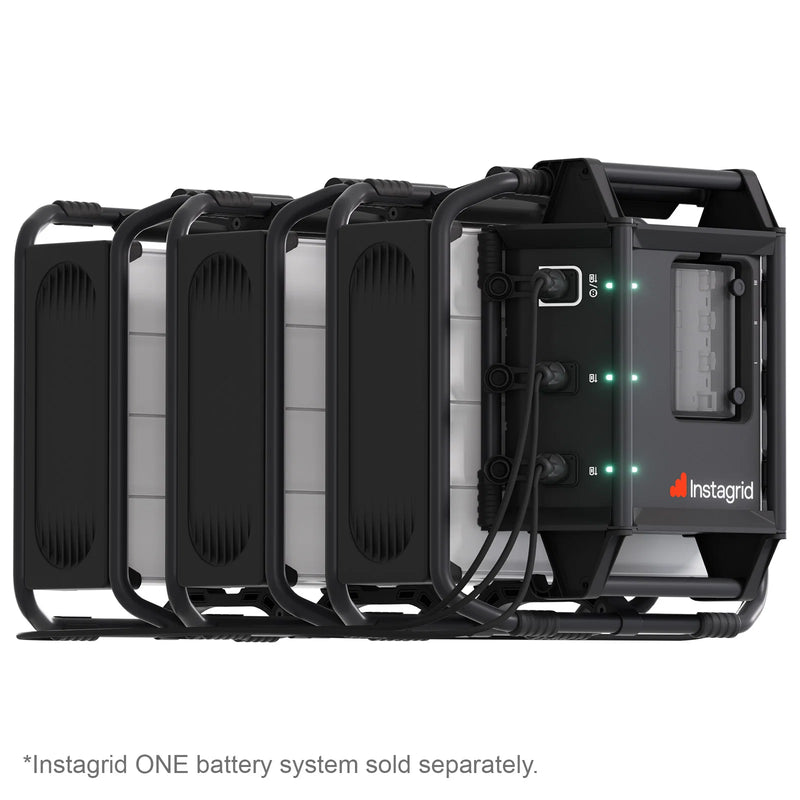

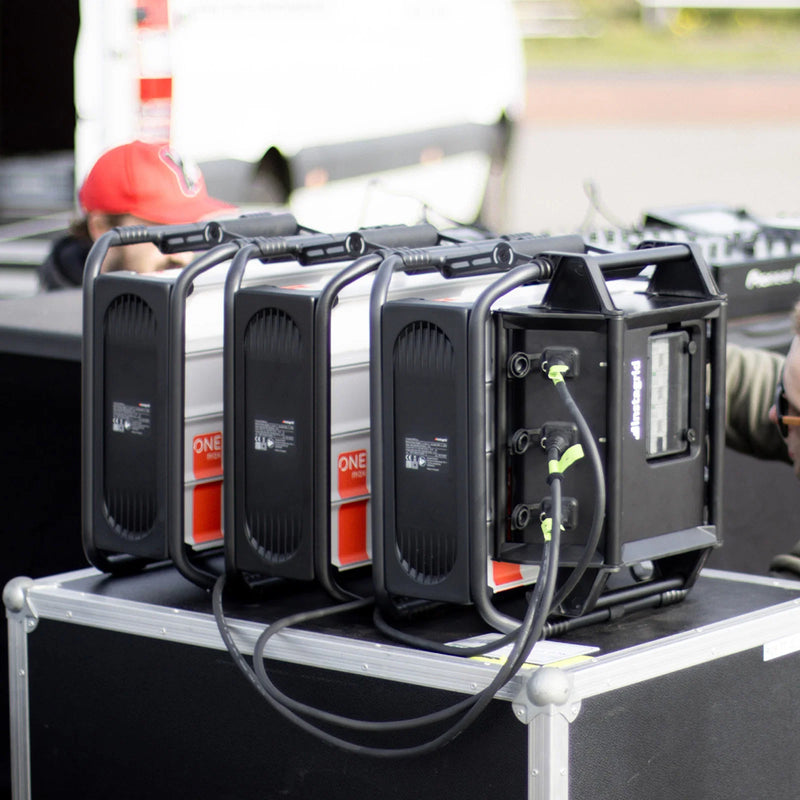

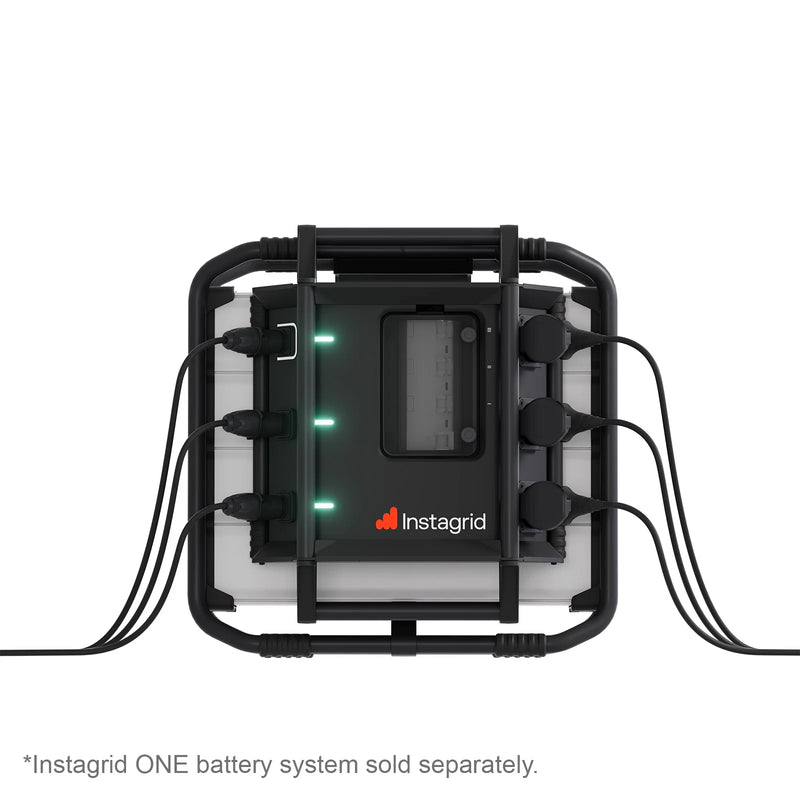

In Island Mode, up to three Instagrid ONE units can be connected to Instagrid LINK. This allows you to increase the available energy capacity for longer-running productions and off-grid applications.
Instagrid ONE units can also be hot-swapped during operation, allowing depleted units to be replaced with charged units while connected equipment continues running.
Continuous Backup Power

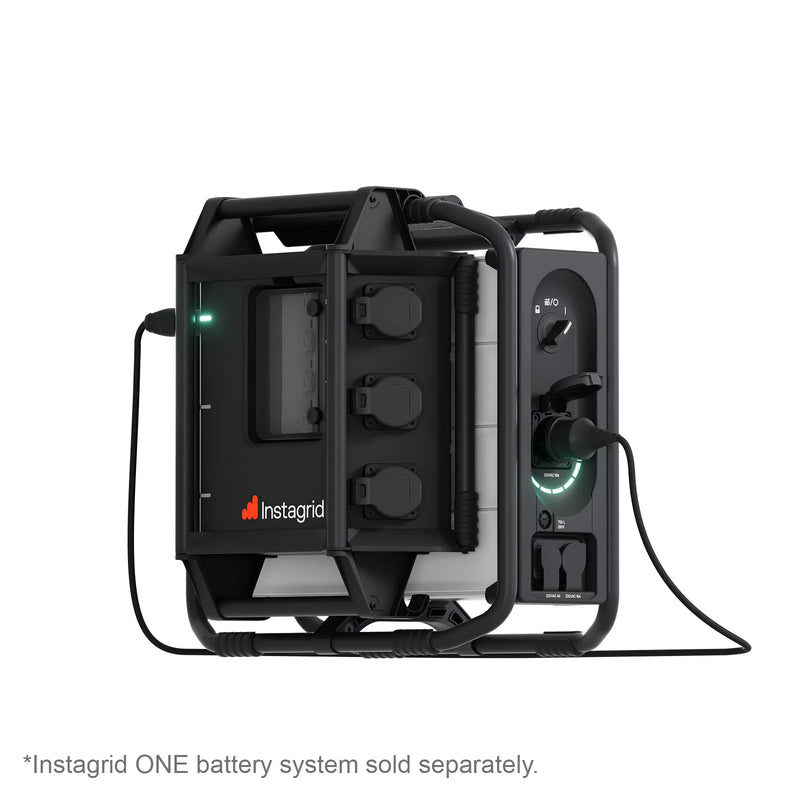

Instagrid LINK can be used with a 230V AC mains supply and an Instagrid ONE to create a continuous power system.
If the mains supply is interrupted, LINK switches from mains to battery power in less than 20 milliseconds, making it particularly useful for professional applications where maintaining power to connected equipment is important.
Three Individually Protected Outputs

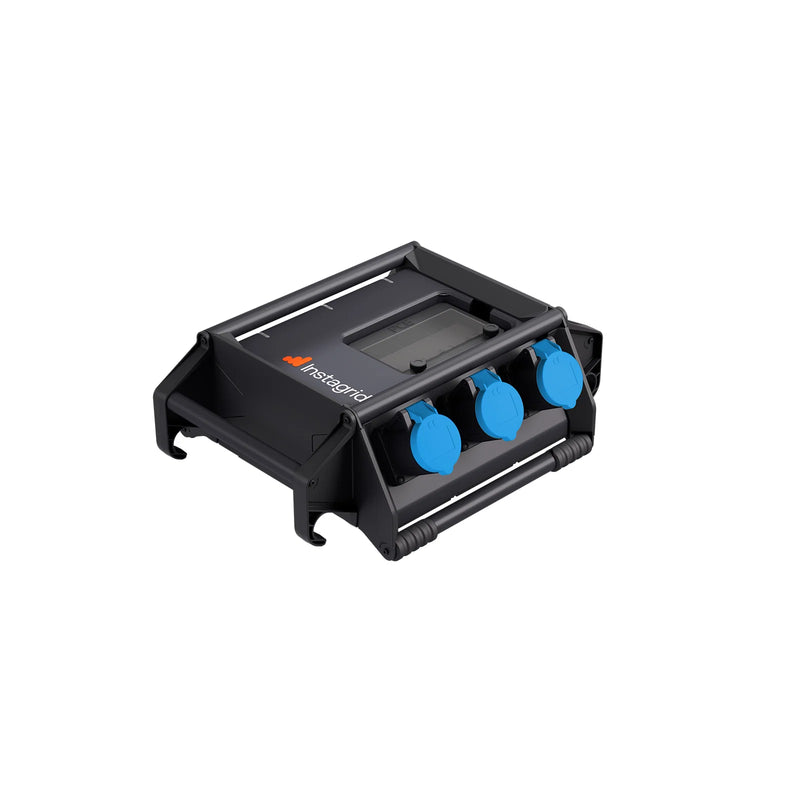

Instagrid LINK provides three 16A 230V CEEform outputs, allowing up to three devices or circuits to be powered simultaneously.
Each output is individually protected by a 30mA Type A RCD, with additional B16 line protection built into the unit.
Key Features
- Intelligent professional power distributor
- Designed to expand the Instagrid ONE portable power system
- Connect up to three Instagrid ONE units in Island Mode
- Hot-swap Instagrid ONE units during operation
- Continuous Power Mode for mains and battery backup
- Less than 20ms mains-to-battery switching time
- Three 230V 16A CEEform outputs
- Individual 30mA Type A RCD protection for each output
- B16 line protection
- Compatible with Instagrid ONE or other 230V AC power sources
- IP54 rated
- Compact 4.5kg construction
Perfect For
- Theatre and live events
- Film and television production
- Broadcast
- Production lighting
- AV systems
- Location shoots
- Mobile production environments
- Extended off-grid operation
- Temporary backup power
- Professional portable power distribution
Technical Specifications
- Brand: Instagrid
- Model: LINK 36
- Output Voltage: 230V AC / 50Hz
- Output Current: 16A
- Outputs: 3 × CEEform (IEC 60309) 16A / 230V
- RCD Protection: 3 × 1P+N Type A 30mA RCD – One Per Output
- Line Protection: 1P B16 Circuit Breaker

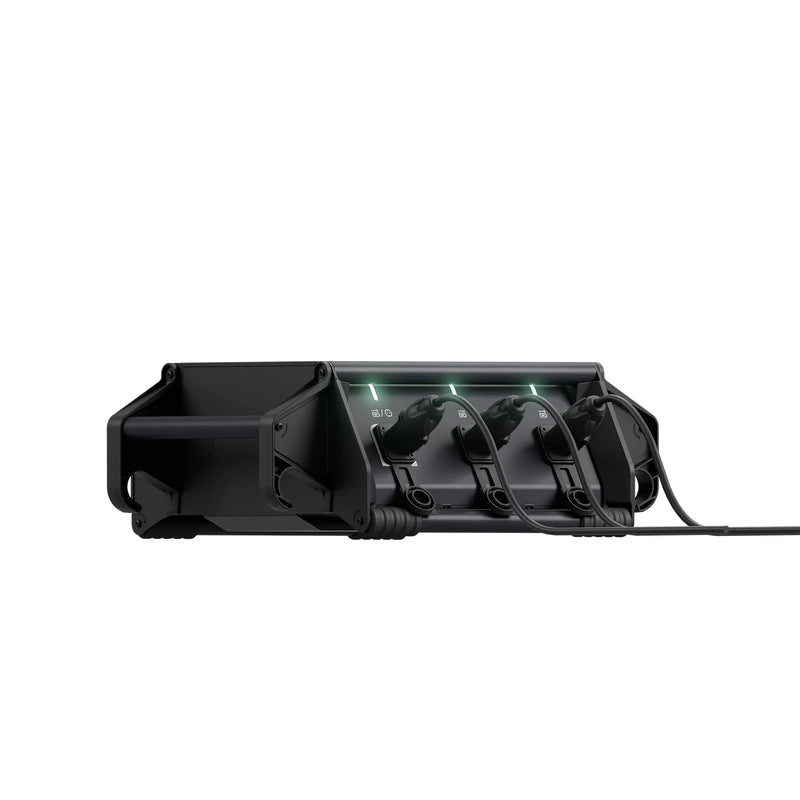

- Input Connections: 3 × Neutrik powerCON TRUE1 TOP®
- Primary Inputs: 1
- Secondary Inputs: 2
- Mains-to-Battery Switching Time: Less Than 20ms
- Compatible With: Instagrid ONE or 230V AC Power Sources
- IP Rating: IP54
- Protection Class: Class II / Double Insulated
- Operating Temperature: -15°C to +40°C
- Weight: 4.5kg
- Country of Origin: Germany

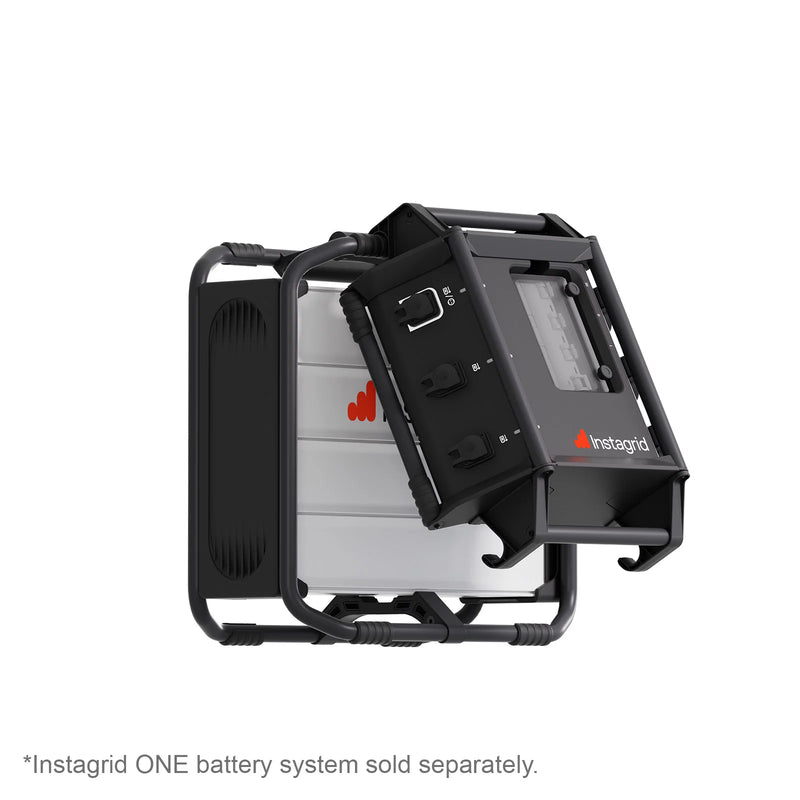

Mounting Options
- Hook & release
- Screw mounting
- Feet
- Velcro straps
What's Included?
- 1 × Instagrid LINK 36
- 1 × Neutrik connection cable
Why Add Instagrid LINK?
For users already working with Instagrid ONE, LINK turns individual portable power supplies into a more flexible professional power system.
Use multiple Instagrid ONE units for increased runtime, hot-swap batteries during long productions, distribute power across three individually RCD-protected outputs or combine mains and battery power to provide automatic backup.
Instagrid LINK 36 is an ideal addition to professional Instagrid systems used across theatre, live events, film, television and broadcast, providing intelligent power distribution, extended runtime and continuous power capabilities in a compact IP54-rated unit.
