BTF-LIGHTING 5050 RGBCCT 5-in-1 LED Tape – 24V, 96 LEDs/m, 3000K–6500K, IP30, 5m
BTF-LIGHTING 5050 RGBCCT 5-in-1 LED Tape – 24V, 96 LEDs/m, 3000K–6500K, IP30, 5m
The BTF-LIGHTING 5050 RGBCCT 5-in-1 LED Tape is a high-density professional LED strip combining RGB colour mixing with dedicated Warm White and Cool White channels within each 5050 LED package.
Featuring 96 LEDs per metre, this 24V tape provides an excellent balance between LED density and versatility. Each 5-in-1 LED combines Red, Green, Blue, Warm White and Cool White, giving you full RGB colour mixing alongside adjustable white output from 3000K Warm White through to 6500K Cool White.
This makes the tape particularly well suited to theatre, film, television, set electrics, practical lighting and scenic applications where both creative colour and adjustable white light are required from a single LED source.
Supplied as a 5 metre roll, this version operates from 24V DC and features a white PCB with an IP30 non-waterproof construction for dry indoor installations.
5-in-1 RGBCCT LED Technology
Each 5050 LED package combines five channels – Red, Green, Blue, Warm White and Cool White. This gives RGBCCT tape considerably more flexibility than conventional RGB or single-white RGBW tape.
RGB provides creative colour mixing, while the dedicated Warm White and Cool White channels provide separate white-light sources. With a compatible RGBCCT controller, the two white channels can be mixed to create adjustable white output between 3000K and 6500K.
Key Features
- Professional 5050 RGBCCT 5-in-1 LED tape
- Red, Green, Blue, Warm White and Cool White within each LED
- 24V DC operation
- High-density 96 LEDs per metre
- 480 LEDs across a 5 metre roll
- 3000K Warm White
- 6500K Cool White
- Tunable white output from 3000K–6500K
- Full RGB colour mixing
- 256-level greyscale
- 120° viewing angle
- 5 metre roll
- White PCB
- IP30 non-waterproof construction
RGB + Tunable White
RGBCCT provides both full RGB colour control and adjustable white light from a single LED tape.
Using a compatible five-channel PWM controller, Red, Green, Blue, Warm White and Cool White can be controlled independently. This allows the tape to produce saturated colours as well as a wide range of white appearances between warm and cool.
For theatrical practicals, scenery and set pieces, this gives designers and technicians significantly more flexibility from a single installation.

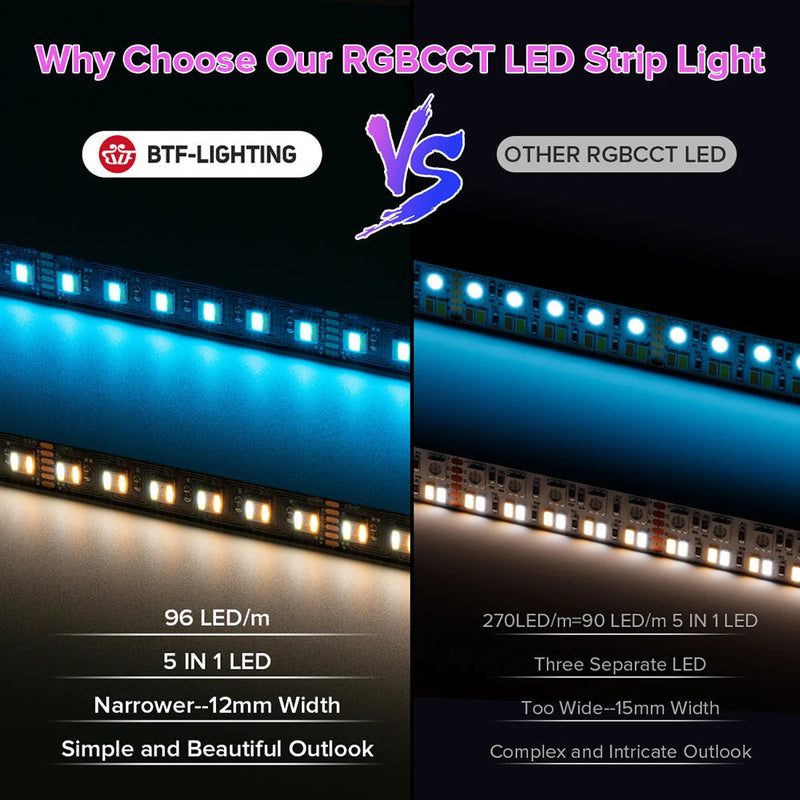

High Density – 96 LEDs/m
With 96 individual 5-in-1 LEDs per metre, this tape provides a higher LED density than conventional 60 LEDs/m RGBCCT tape.
A complete 5 metre roll contains 480 individual 5050 5-in-1 LEDs, making it particularly useful for applications where closer LED spacing and a more continuous illuminated appearance are desirable.
Perfect For
- Set electrics
- Theatrical practicals
- Practical lighting
- Scenic lighting
- Theatre productions
- Film & television
- Live events
- Props and set pieces
- Custom lighting fixtures
- Colour-changing practicals
- Tunable white applications
- Production lighting projects

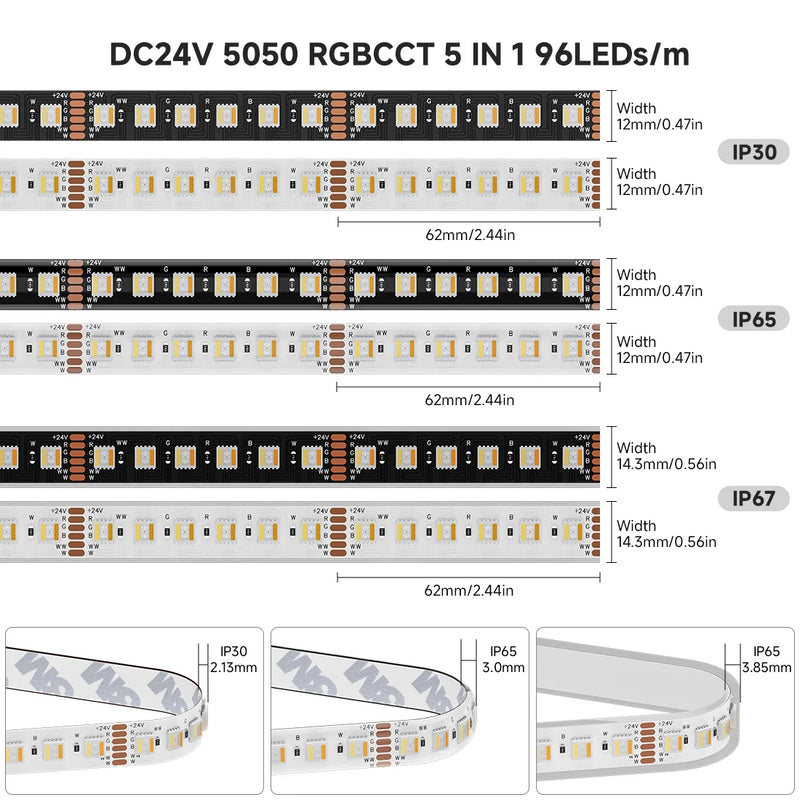

Technical Specifications
- Brand: BTF-LIGHTING
- Product Type: RGBCCT / RGB + Tunable White LED Tape
- LED Type: 5050 SMD 5-in-1
- Channels: Red, Green, Blue, Warm White, Cool White
- Colour Temperature Range: 3000K–6500K
- LED Density: 96 LEDs/m
- LEDs Per 5m Roll: 480
- Working Voltage: 24V DC
- Roll Length: 5m
- PCB Colour: White
- Viewing Angle: 120°
- Greyscale: 256 Levels
- IP Rating: IP30 – Non-Waterproof
- Working Temperature: -25°C to +50°C
- Storage Temperature: -40°C to +50°C
Standard PWM Control
This is a non-addressable RGBCCT LED tape. The five channels are designed to be controlled using a compatible five-channel PWM RGBCCT controller.
The connected section operates together rather than as individually addressable pixels, making this tape ideal for applications requiring RGB colour and adjustable white output without pixel effects.
Important Information
- 24V DC power supply is not included.
- RGBCCT controller is not included.
- A compatible 5-channel PWM RGBCCT controller is required for independent RGB, Warm White and Cool White control.
- This is the IP30 non-waterproof version and is intended for dry indoor applications.
- This product is standard PWM RGBCCT LED tape and is not individually addressable pixel tape.
- Always correctly calculate power requirements and voltage drop when designing LED tape installations.
BTF-LIGHTING 5050 RGBCCT LED Tape combines RGB colour mixing with 3000K–6500K tunable white in a high-density 96 LEDs/m format – an extremely versatile LED tape for set electrics, practicals, scenery and professional production lighting.
