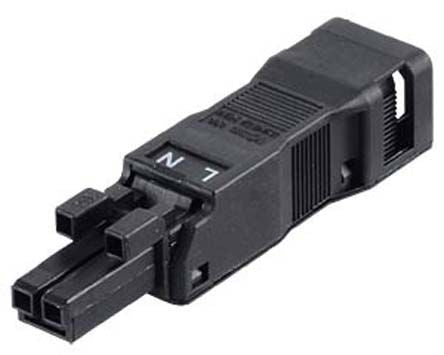

WAGO 890-102 — 2-Pole WINSTA® MINI Female Socket with Strain Relief

The WAGO 890-102 WINSTA® MINI Female Socket delivers fast, tool-free wiring in compact installations—ideal for lighting, modular panels, and tight spaces. Engineered with Push-in CAGE CLAMP® technology and integrated strain relief housing, it ensures reliable, vibration-resistant connections without additional tools.

Key Features

• Push-in CAGE CLAMP®: Accepts solid or fine-stranded conductors (0.25–1.5 mm² / 22–16 AWG) for quick and secure wiring.
• Compact 4.4 mm Pitch: Space-saving profile with male/female polarisation coding (Cod. A), perfect for dense lighting arrays.

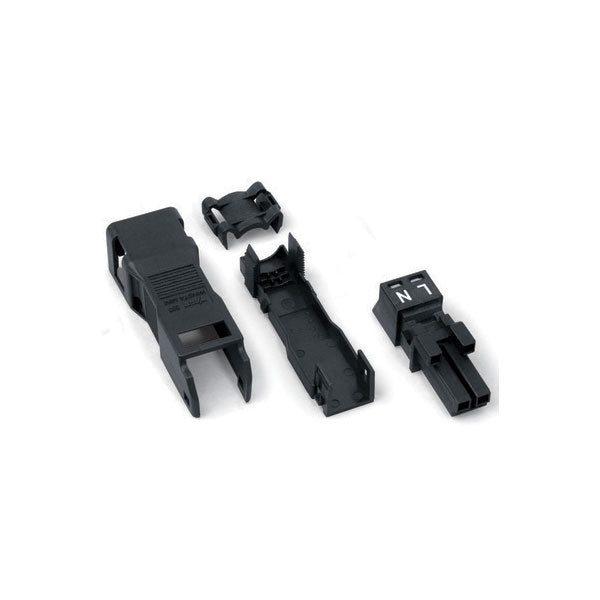

• Strain Relief Housing: Protects the cable and ensures long-lasting retention and connection stability.
• 16 A / 250 V Rating: Suitable for most lighting and low-voltage modular applications.
• IP40 Protection: Defends against solid objects larger than 1 mm when in place.

Technical Specifications

• Pole Count: 2 (female)
• Max Current / Voltage: 16 A / 250 V AC
• Wire Compatibility: 0.25–1.5 mm² solid or stranded (22–16 AWG)
• Pitch: 4.4 mm
• Operating Temp: –35 °C to +85 °C
• Dimensions (mated): Approx. 13.2 mm H × 15.6 mm W × 61.6 mm D
• Construction Materials: Black polyamide housing, tin-plated copper alloy contacts

Ideal For

• Compact lighting systems and recessed panel designs
• Fast tool-free wiring in professional installations
• Applications needing cable protection and secure fittings
• Modular kits, exhibitions, and field wiring setups

In the Box

• 1 × WAGO 890-102 2-Pole Female Socket with Strain Relief Housing

Download Technical Documentation

📄 View datasheets, CAD models, and specifications on WAGO’s official site
