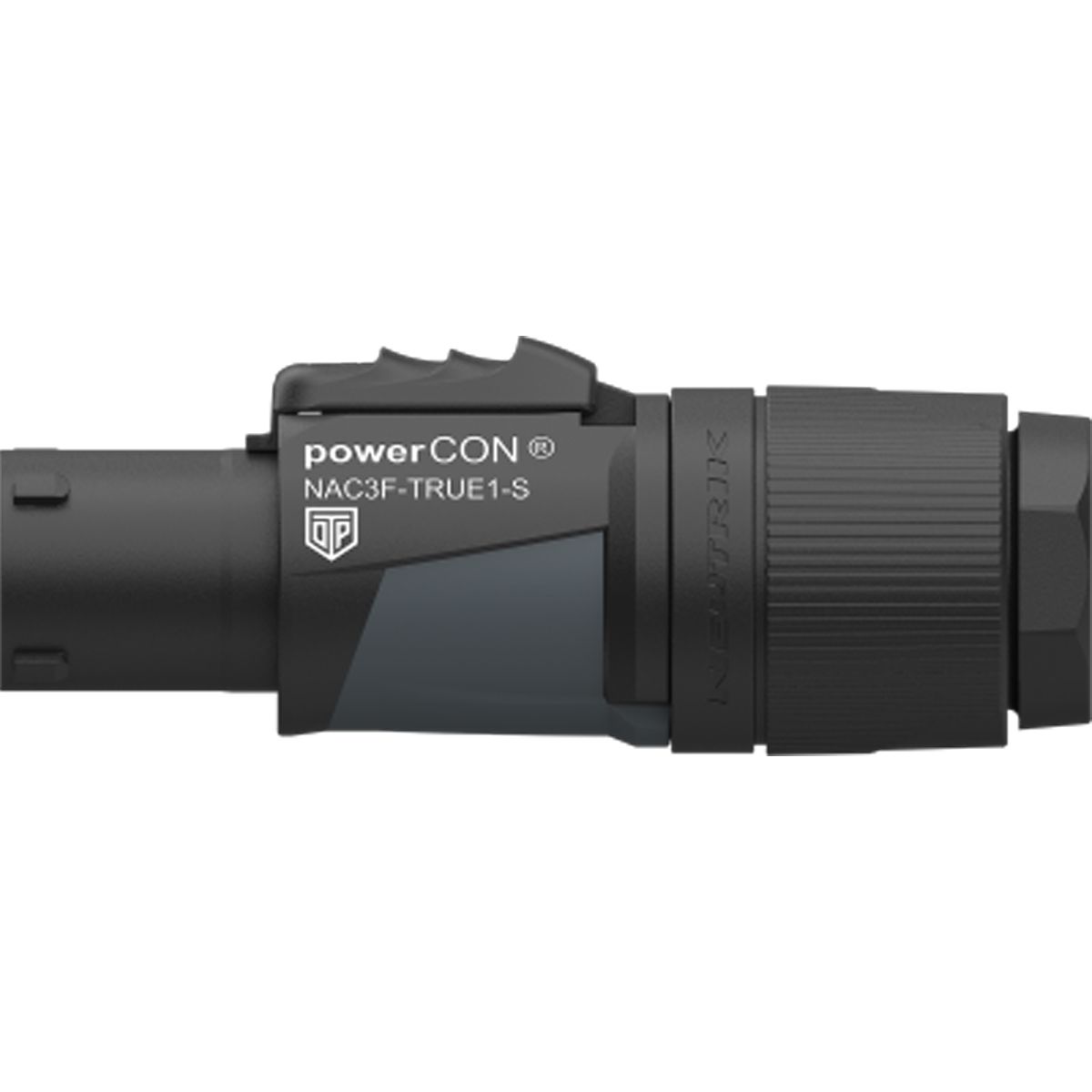

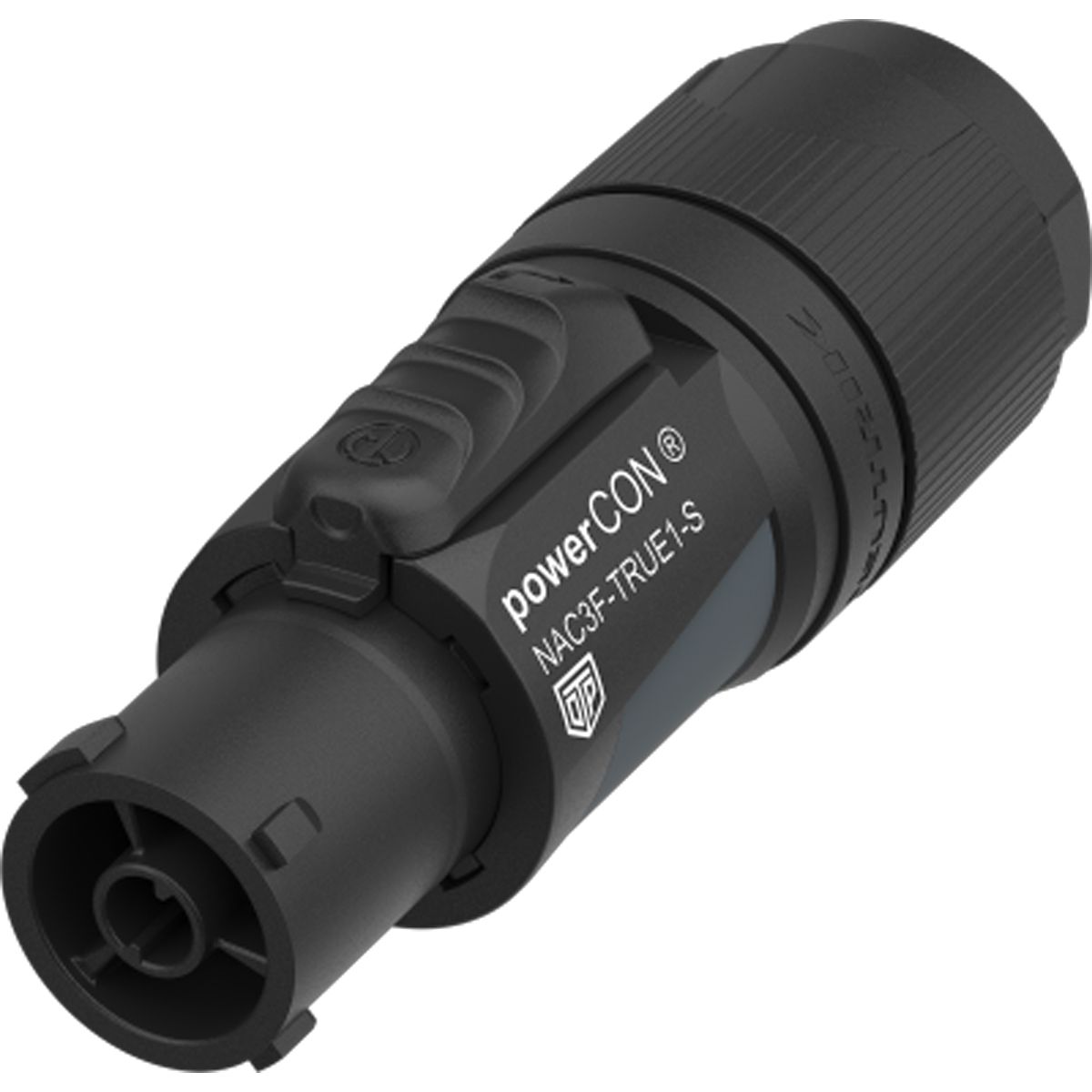

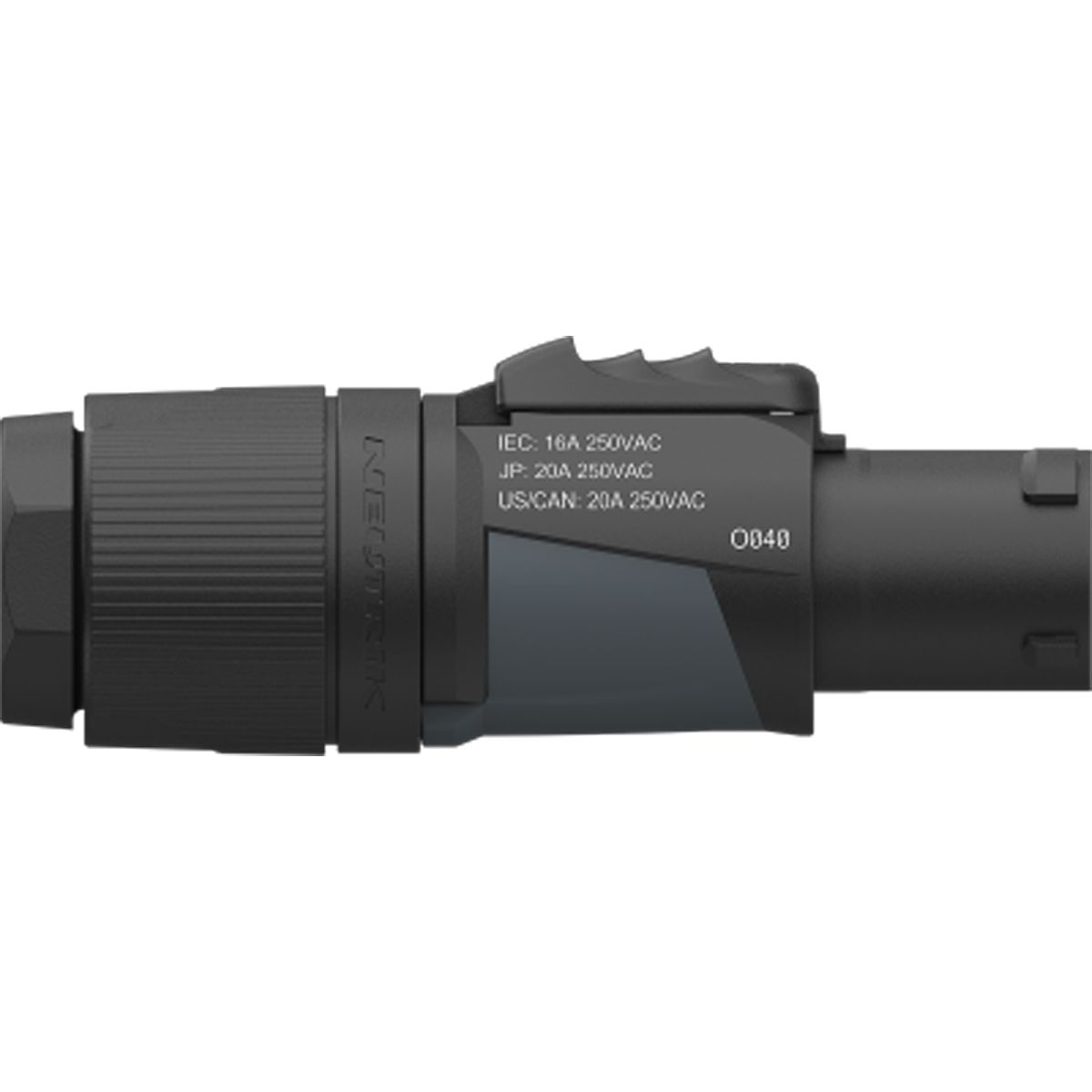

Neutrik NAC3F-TRUE1-S — Locking Female powerCON® TRUE1 Connector (6–12 mm Cable)

Neutrik NAC3F-TRUE1-S — Locking Female powerCON® TRUE1 Connector (6–12 mm Cable)

Regular price £7.58 GBP
Regular price Sale price £7.58 GBP
Sale Sold out
Taxes included.

In stock

Quantity

The Neutrik NAC3F-TRUE1-S is a heavy-duty, locking female connector designed for harsh environments and live-load insertion with its breaking capacity (CBC). Built to outperform traditional appliance couplers, it ensures safe, reliable power connections in professional applications.

Constructed from UV-rated, heavy-duty polyamide with superior sealing (IP65/IP67), this connector meets ENEC, VDE, UL, and CSA standards. Its robust locking mechanism and strain relief accommodate cables from 6–12 mm in diameter, ensuring durability and secure retention.

Key Features

  • Breaking Capacity (CBC): Designed for live or under-load mating, ideal for demanding environments
  • Rugged Protection: IP65/IP67 when mated or capped; UV-resistant polyamide body built for outdoor use
  • Certified Safe: ENEC & VDE (IEC 60320-1), UL (60320-1, UL 498), CSA standards
  • Secure Fit: Twist-lock mechanism with cable strain relief for 6–12 mm OD cables

Specifications

  • Contact Resistance: ≤ 2 mΩ
  • Dielectric Strength: 4 kV DC / 2.8 kV AC
  • Insulation Resistance: > 0.1 GΩ (IEC 68-2-30)
  • Contacts: 2 power + PE
  • Current Rating: Europe: 16 A / 250 V AC; UL/CSA: 20 A / 250 V AC
  • Compatibility: Cable OD 6–12 mm, Wire size 1.0–2.5 mm² (14 AWG)
  • Lifespan: > 5000 mating cycles
  • Materials: Polyamide (PA 66) body & insert, copper alloy contacts with 2 μm Ag plating, Polyketon strain relief
  • Environmental Ratings: UL 94 V-0 flame resistant, UV resistant (F1), -30 °C to +80 °C operating temperature

Why It Matters

  • Ensures tense-free setup and teardown in live environments thanks to its CBC design.
  • Exceptional sealing and certification make it perfect for touring, outdoor events, and industrial use.
  • Recognised and certified worldwide—trusted by professionals across industries.

In the Box

  • 1 × Neutrik NAC3F-TRUE1-S Locking Female powerCON® TRUE1 Connector

Download Technical Documentation

📄 View datasheets and certifications on Neutrik’s official site
