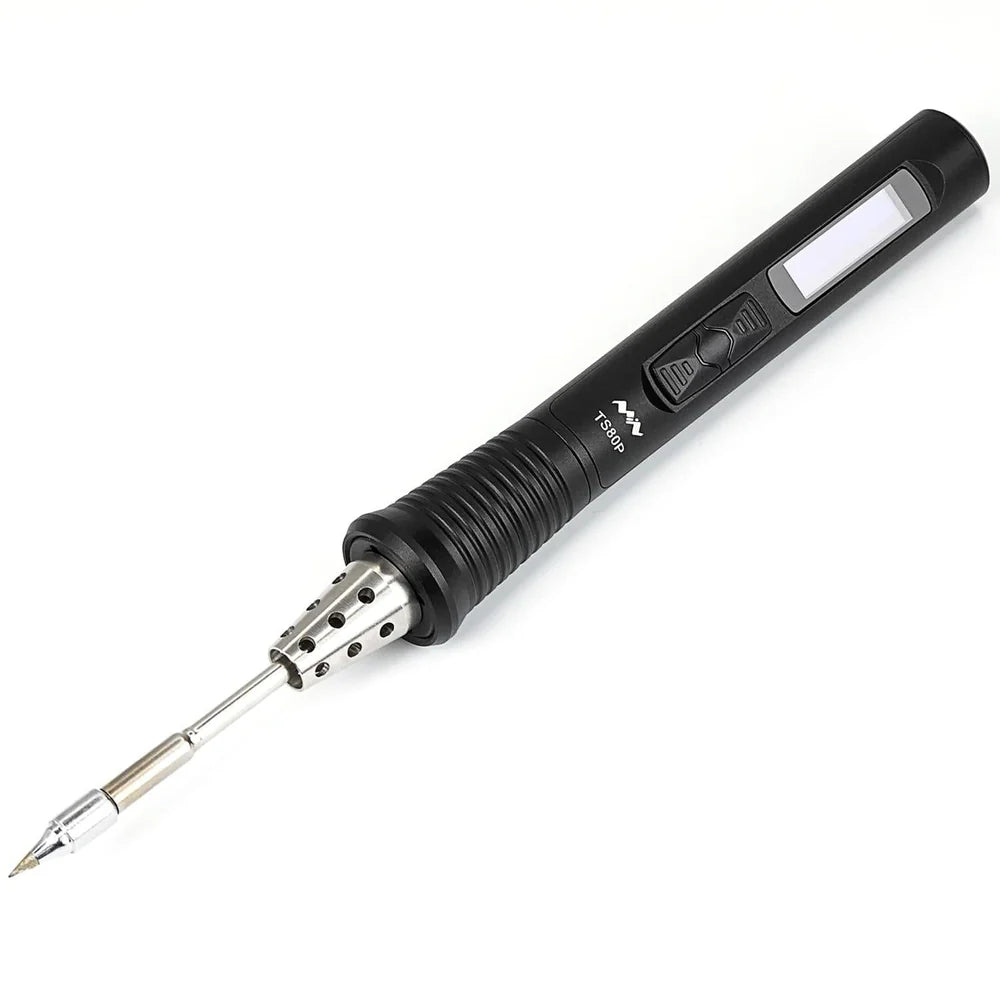

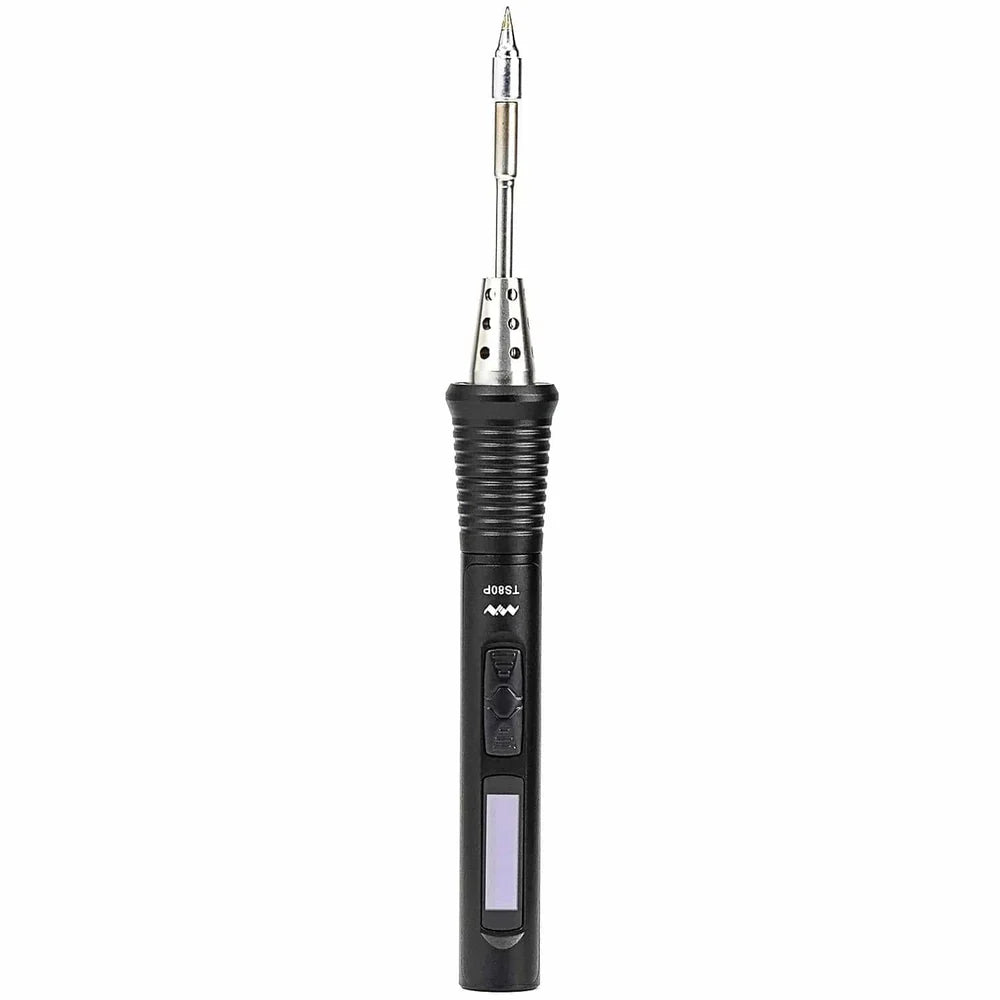

Miniware TS80P — Smart USB-C 30 W Portable Soldering Iron

The Miniware TS80P is a sleek, portable smart soldering iron built for professionals and makers who need power, precision, and flexibility. Machined from CNC aluminium and featuring an OLED display, it combines compact design with high-tech performance.

Powered via USB-C (PD 2.0 / QC 3.0), the TS80P reaches up to 30 W output and heats from room temperature to 300 °C in just 8 seconds—ideal for on-the-go repairs, field work, or compact workstations. Its advanced chip control maintains accurate temperature with ±3% stability and includes convenient safety features like sleep mode, auto shut-off, and port protection.

Key Features

• Portable Power: Up to 30 W via USB-C PD (12V 3A) or QC (9V 2A)
• Fast Heating: Heats to 300 °C in ~8 seconds
• OLED Display: Clear tip temperature and status monitoring

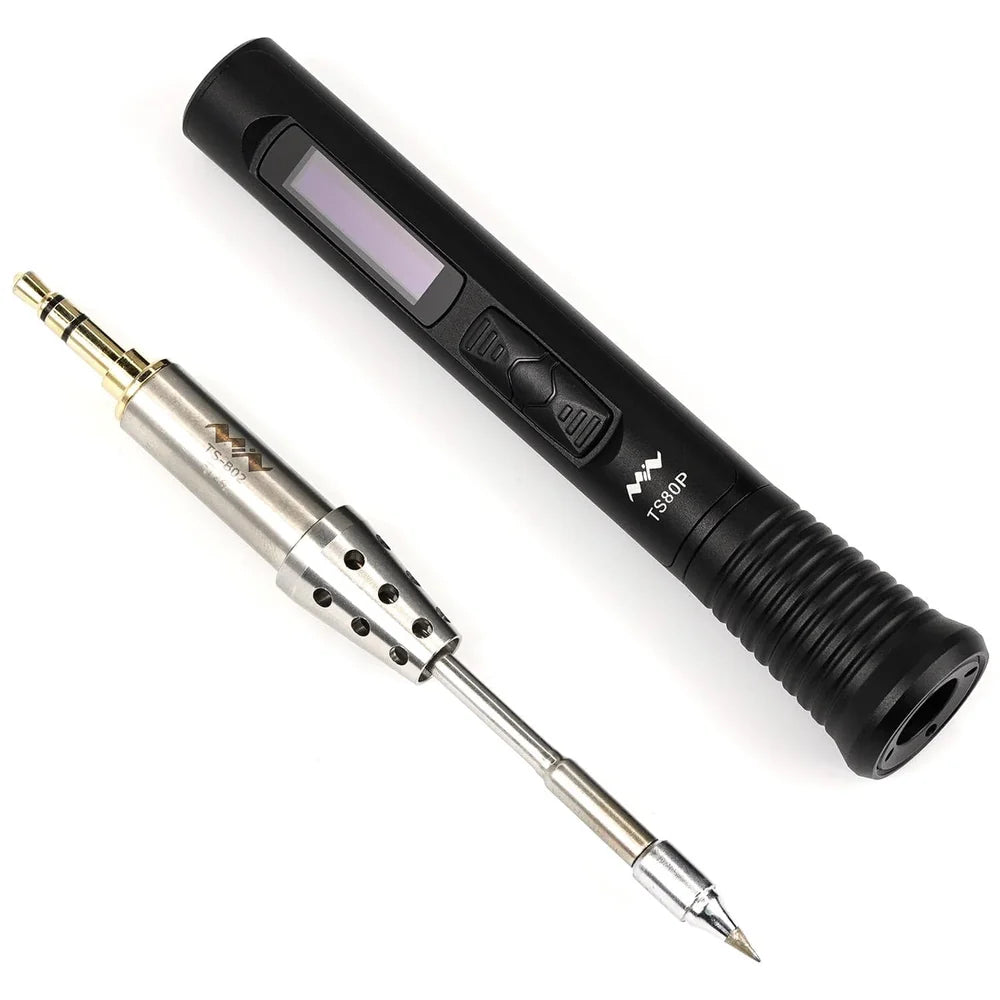

• Easy-Push Tip Fastener: Quick tip swaps with a single push
• Smart Controls: Sleep mode, automatic shutdown, port protection
• Open Source: Customise firmware, temperature curves, and even the boot logo via config.txt

Specifications

• Model: TS80P
• Power Input: USB-C PD (12 V/3 A) or QC (9 V/2 A)
• Max Output: 30 W
• Temperature Range: 100 °C – 400 °C
• Temperature Stability: ±3%
• Warm-up Time: ~8 s to 300 °C
• Display: OLED screen
• Construction: CNC aluminium body, ergonomic design
• Length (handle): 96 mm; total length with tip: ~155 mm
• Weight: ~38 g (handle only)
• Certifications: CE, FCC

Ideal For

• Portable electronics repair and field servicing
• Tight workspaces and small electronics build-ups
• Custom temperature profiles and firmware tinkering
• High-performance soldering without bulky equipment

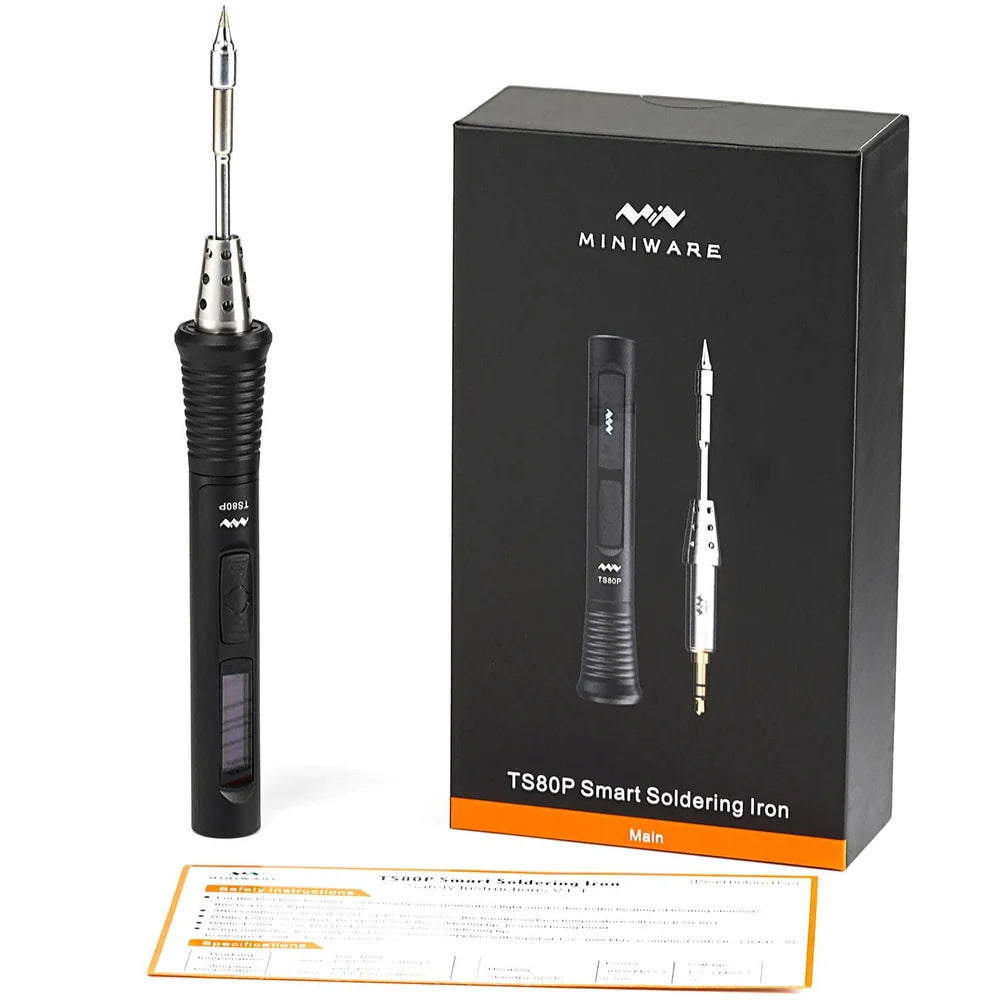

In the Box

• 1 × Miniware TS80P Controller

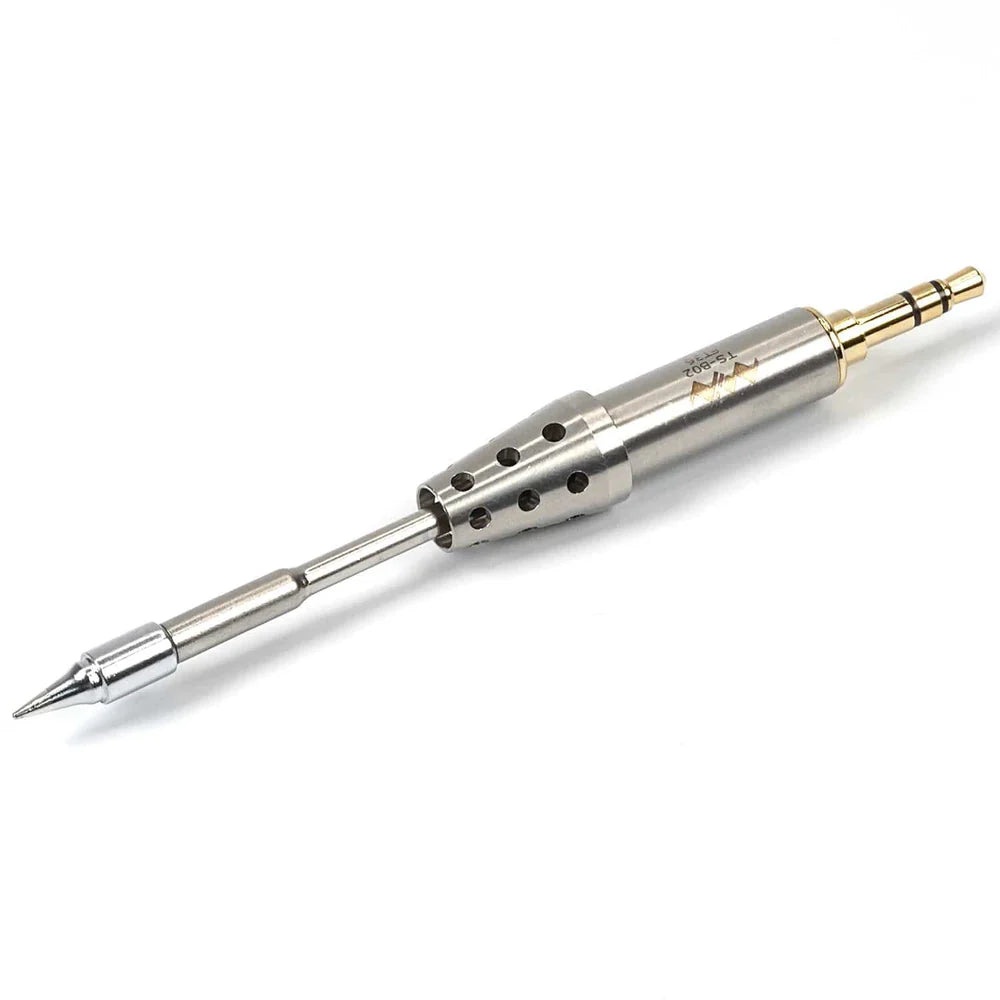

• 1 × Soldering Tip (B02)
