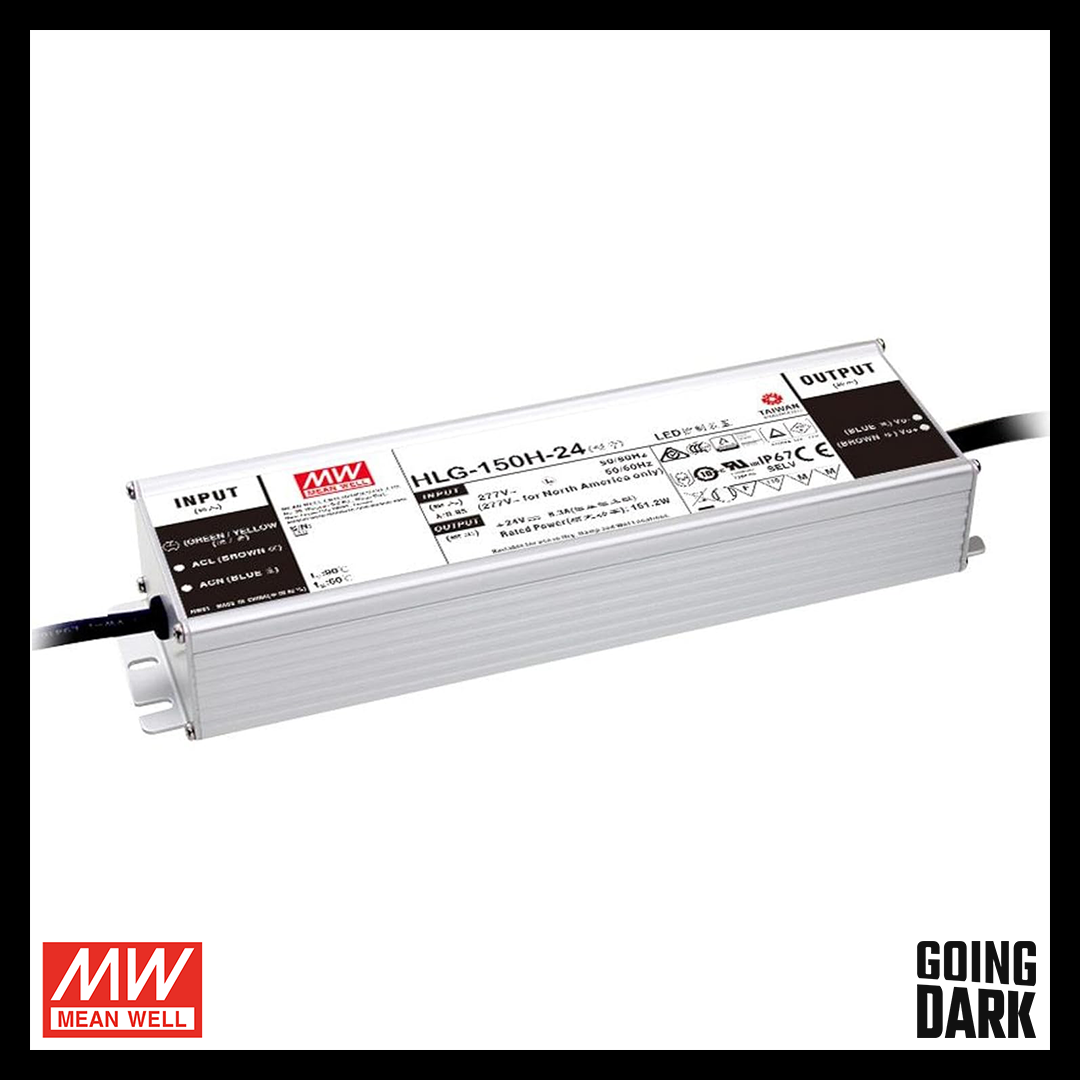

Meanwell HLG-150-24 — 150W 24V Waterproof LED Power Supply

The Meanwell HLG-150-24 is a high-performance 150W, 24V DC power supply designed for professional LED lighting installations. Known for its rugged reliability, the HLG series is trusted by theatre technicians, touring crews, and venue installers worldwide.

Featuring an IP67-rated housing, this unit is dust-tight and waterproof, making it perfect for both indoor and outdoor applications. With outstanding efficiency and a silent fanless design, it ensures smooth, reliable operation for even the most demanding productions.

Whether you’re powering long runs of LED tape on set pieces, architectural lighting in a venue, or large-scale outdoor event rigs, the HLG-150-24 delivers dependable performance in any environment.

Key Features

• Output Power: 150W constant voltage at 24V DC
• Rugged Build: IP67-rated waterproof and dustproof housing
• Wide Input Voltage Range: 90–305V AC, suitable for global touring
• High Efficiency: Up to 94% for reduced heat and energy costs
• Silent Operation: Fanless design — no background noise
• Reliable Brand: Industry-trusted Meanwell quality

Specifications

• Model: HLG-150-24
• Output Voltage: 24V DC
• Output Current: 6.3A
• Rated Power: 151.2W
• Input Voltage: 90–305V AC, 47–63Hz
• Efficiency: Up to 94%
• Operating Temperature: -40°C to +70°C
• Protection: Over-current, over-voltage, short-circuit, over-temperature
• Ingress Protection: IP67 (dust-tight and waterproof)
• Dimensions: 228 × 68 × 38.8 mm
• Weight: 1.2kg

Ideal For

• Theatre set lighting and long LED tape runs
• Touring rig installations
• Venue architectural lighting
• Outdoor events and signage
• Exhibitions and displays

In the Box

• 1 × Meanwell HLG-150-24 Power Supply
• Pre-installed input and output cables (stripped ends)
• User manual

Download Technical Specification

📄 Click here to download the full Meanwell HLG-150-24 datasheet (PDF)
