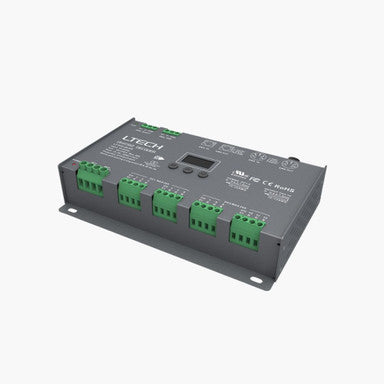

LTECH LT-912-OLED, 12 Channel 4A, 12-24V DC, DMX512 Decoder
Inc Vat
Technical Specifications
- Input signal: DMX512
- Voltage: 12V~24V DC
- Output: Constant Voltage
- Channels: 12
- Current: 4A ×12CH 48A Max
- Max output power: 576W/1152W(12V/24V)

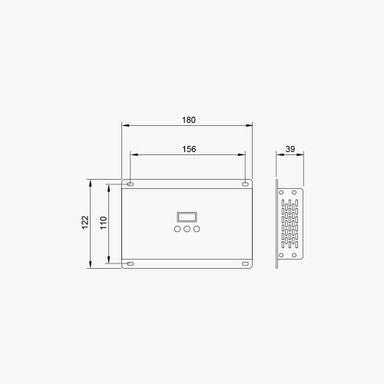

- Dimensions (mm): 180L x 122W x 39H
- Guarantee: 5 Years
This 12-channel DMX decoder is ideal for controlling RGBCCT, RGBW, RGB, CCT adjustable, and single-color LED strips. It allows multiple DMX channels to be assigned to a single address, increasing power capacity per address while reducing the number of addresses. Dimming options include standard, linear, LOG, and custom 0.1-9.9 curves, with adjustable 8-bit or 16-bit dimming increments for smooth control.

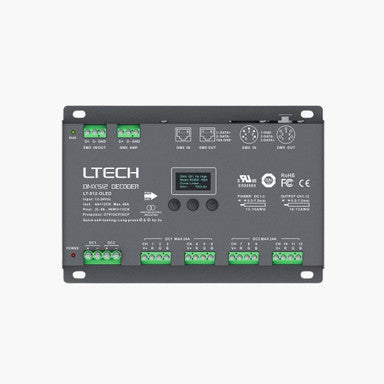

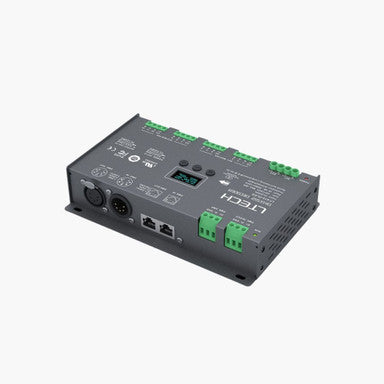

The unit features an OLED screen and touch buttons for easy setup, with DMX connections via XLR-5, RJ45, or screw terminals. Operating on a 12-24V DC low voltage circuit, it supports up to 576W of 12V or 1152W of 24V LED lighting, depending on the LED driver used. A built-in DMX signal amplifier ensures reliable performance.
