Going Dark - 24V 5-in-1 RGBCwWw LED Strip - 5m

5-in-1 5050 LEDs · 60 LEDs/m · Cut every 100 mm · 5 m reel · Professional theatre & live events

True 5-channel colour: RGB + 6500K White + 2500K Warm White in a single 5050 package for seamless on-camera and audience-facing looks.

24V architecture for longer runs, lower voltage drop, and smoother fades on show control.

Cut every 100 mm (6 LEDs) to land cleanly on set piece dimensions.

Pre-soldered 250 mm tails for rapid deployment—no bench time on site.

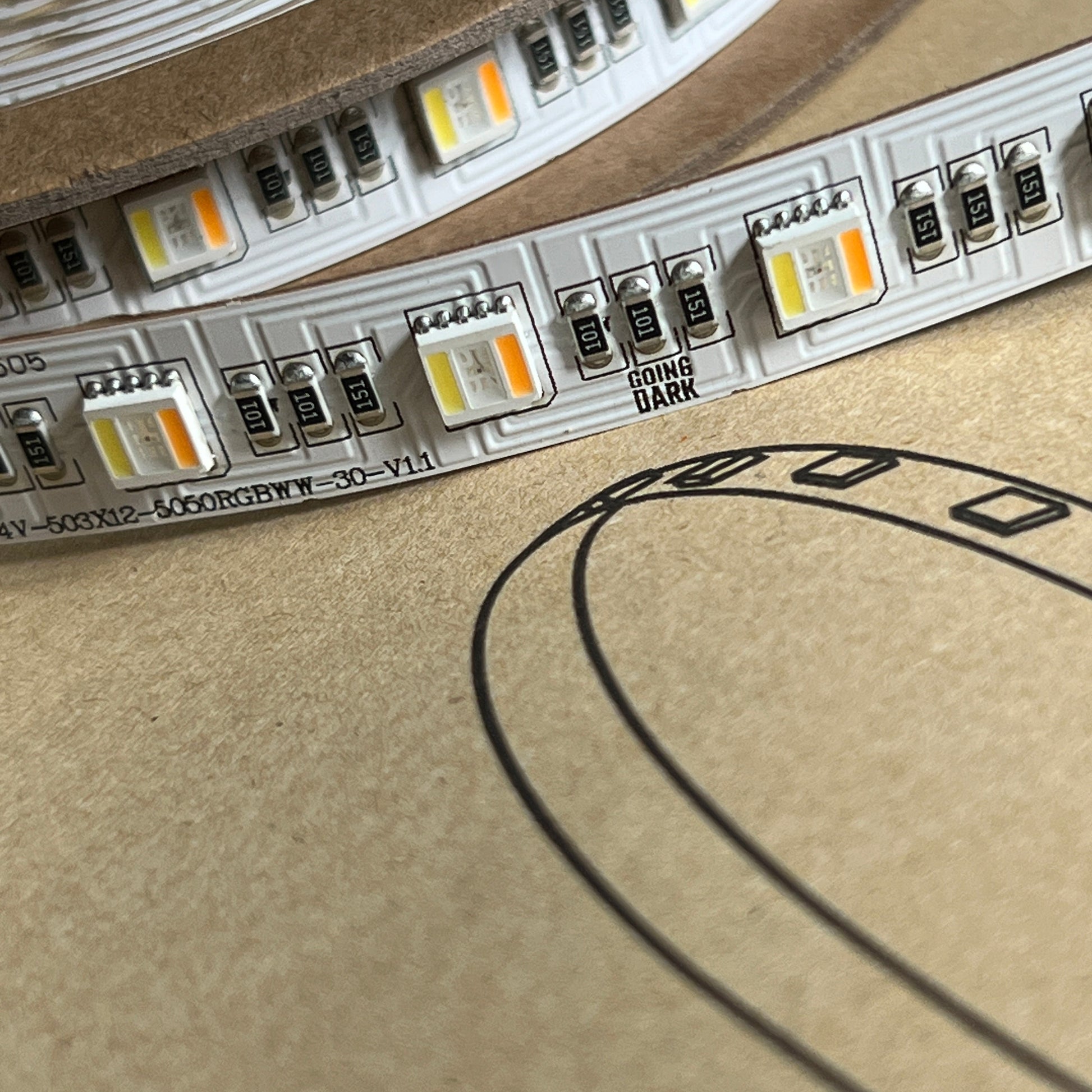

Neutral white 12 mm PCB suited to scenic integration.

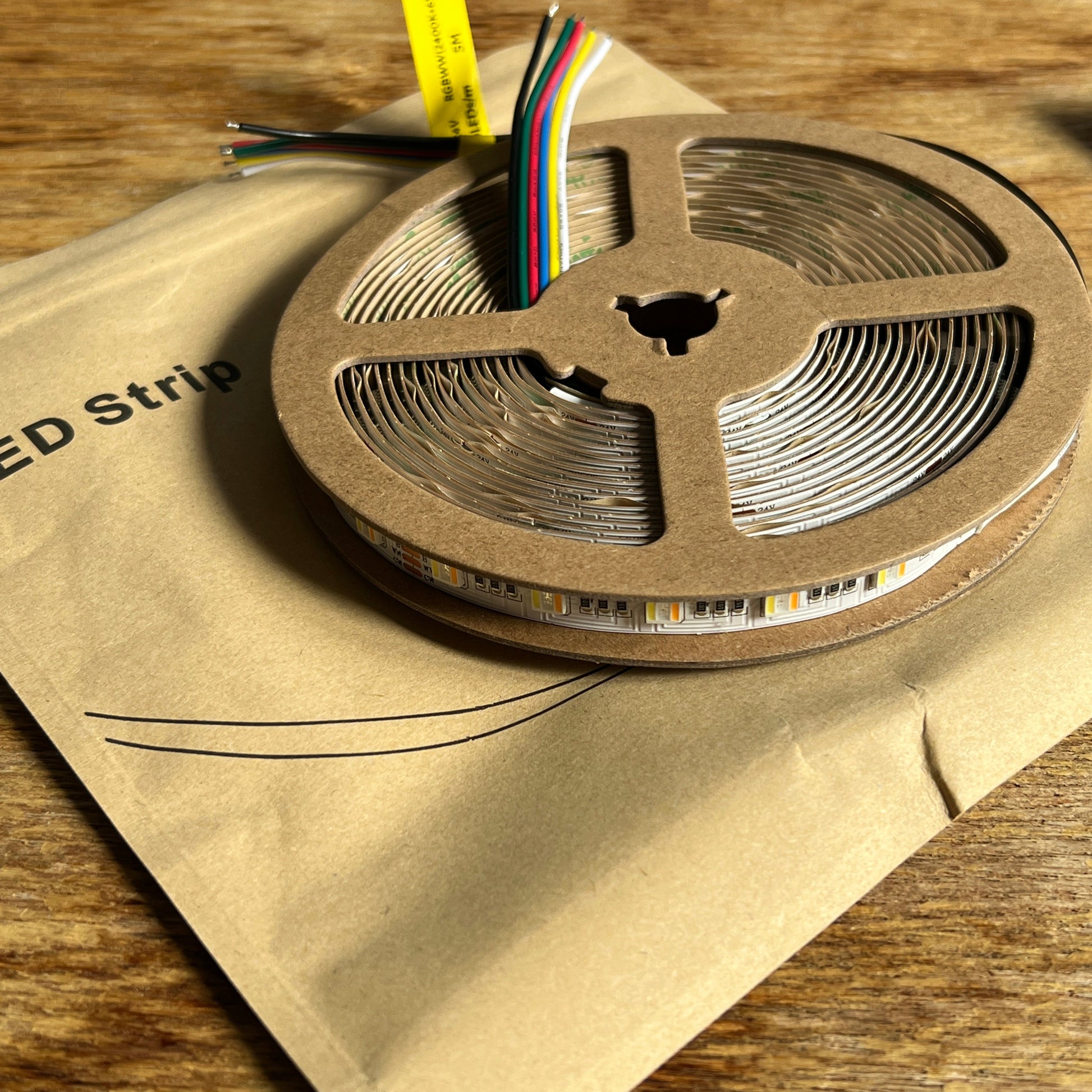

Eco Packaging

Every reel is supplied in eco-friendly packaging: a recyclable paper sleeve and cardboard reel. No single-use plastics, no excess waste — just packaging that protects your product and the planet.

• 100% recyclable sleeve and reel
• Flat-pack friendly for efficient storage
• Professional look that’s theatre-ready straight out of the box

Key Specs

Power & Control Notes

• Plan PSU capacity at 26 W/m worst case (all channels full). A full 5 m reel can draw up to ~130 W—allow headroom.
• Not recommended to drive all five channels at 100% simultaneously for extended periods, as this can overheat the copper PCB.
• Use a 5-channel controller (RGB + W + WW). PWM compatible.
• Observe correct polarity: the black wire is +24V common.

What’s in the box

• 1 × 5 m reel, IP20
• Factory-fitted 250 mm input tails

Recommended accessories

• 24V constant-voltage power supply (sized per run length)
• 5-channel PWM controller / dimmer (RGB + W + WW)
• Mounting clips or profile as required

Installation Guidance

• Cut only on the marked pads (every 100 mm).
• Observe minimum bend radius; avoid twisting or bending across LED components.
• Derate current for longer runs; feed from both ends for even brightness on lengths >5 m.

Typical applications

Stage edges, set pieces, coves, architectural accents, audience-safe eye-lines, and any install demanding precise white balance alongside saturated colour.

FAQ

Can I run a full 5 m from one end?
Yes, but for best uniformity on full-power looks, power-inject or feed both ends—especially when using white channels at high output.

Which controller do I need?
Any 5-channel constant-voltage PWM controller (RGB + W + WW). DMX/Art-Net nodes with 5 CV outputs are ideal for theatre.

Is this suitable for outdoor?
This listing is for IP20 (indoor). For splash-resistance, choose an IP65/IP67 variant.

What tails are included?
Factory-fitted 250 mm tails for rapid connection onsite.
