DMX 5-Pin to RJ45 Adapter — Male & Female

The DMX 5-Pin ⇄ RJ45 Adapter lets you run DMX512 control over Cat5/5e/6 data cable, bridging standard 5-pin XLR lighting gear with fixtures, nodes, and wall plates that use an RJ45 DMX port. It’s a passive pin-to-pin breakout (not Ethernet), ideal for quick patching, installs, and touring rigs.

Key Features

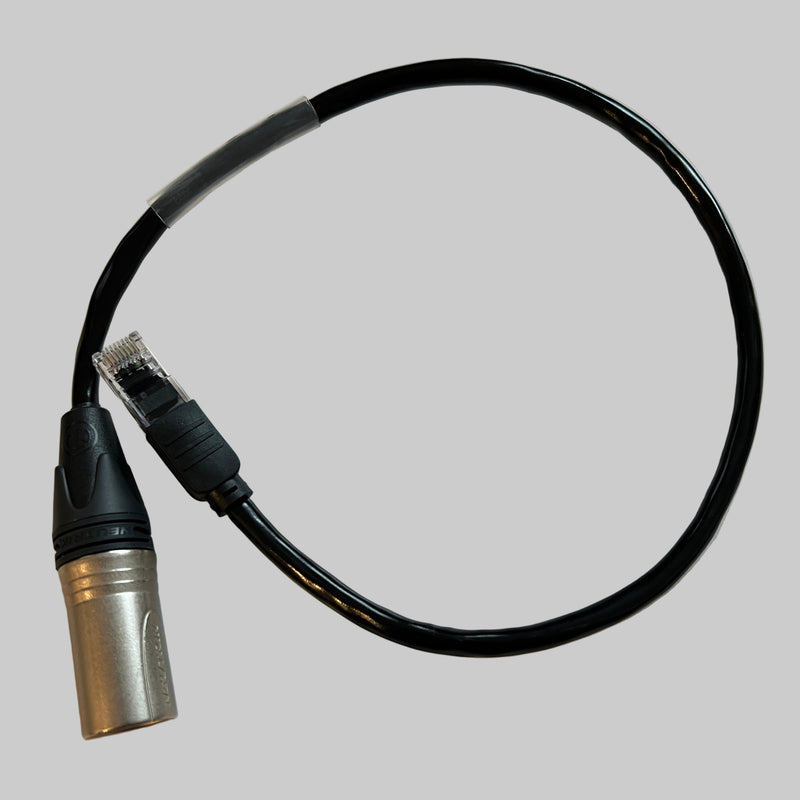

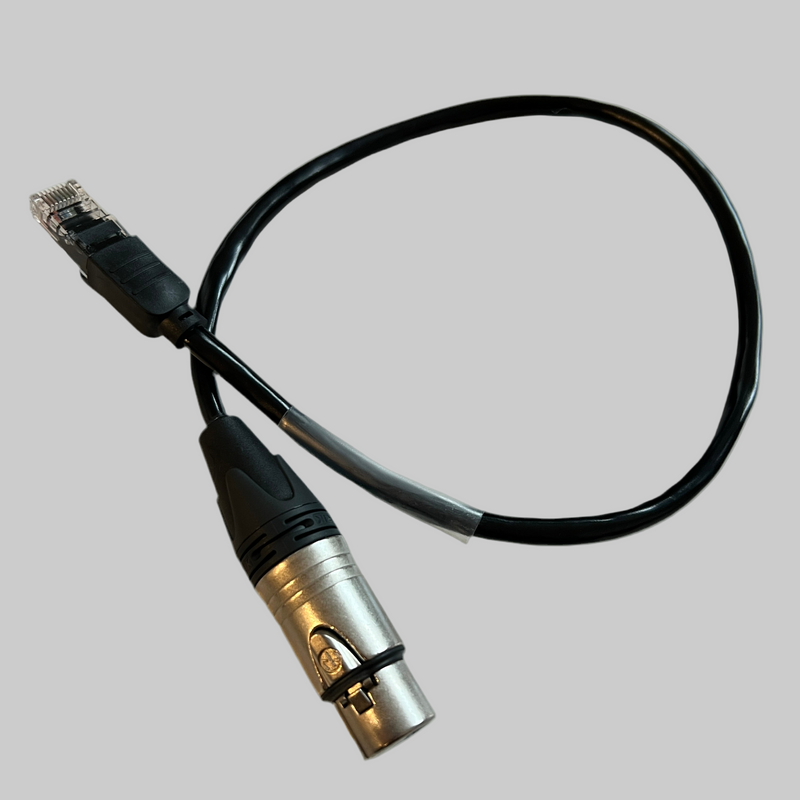

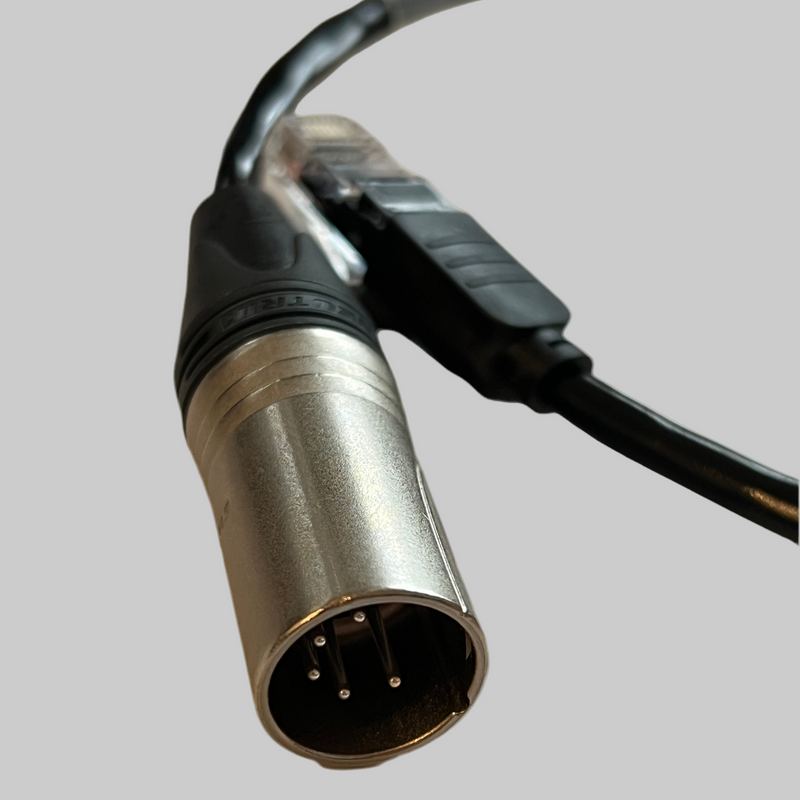

• Two variants: 5-pin XLR Male → RJ45 and 5-pin XLR Female → RJ45
• DMX512 compatible: Passive break-out for DMX over copper using Cat cable
• Tour-ready build: Rugged connectors with strain relief for reliable show use
• Plug-and-play: No power required, no configuration
• Clear labelling: Connector gender and direction marked for fast setup

Specifications

• Signal: DMX512 (ANSI E1.11) over copper (passive)
• Connectors: 5-pin XLR (male or female) to 8P8C RJ45 jack
• Cable support: Cat5/5e/6 solid or stranded patch leads
• Wiring: Passive pin breakout for DMX use (not IP/Ethernet).
  Note: RJ45 DMX pinouts can vary by manufacturer. Match the pin standard on your console/node and fixture, or test before show-time.
• Use cases: Consoles to RJ45 DMX wall plates, nodes to fixtures, temporary jumps in truss
• Compliance: Low-voltage data use; RoHS (typical)

Important Notes

• Not Ethernet: Does not convert to Art-Net/sACN or any IP protocol. DMX only.
• Pinout caution: Some brands use different RJ45 DMX pin maps. If unsure, use a tester or consult the device manual.

What’s in the Box

• 1 × DMX 5-Pin ⇄ RJ45 Adapter (selected variant)
