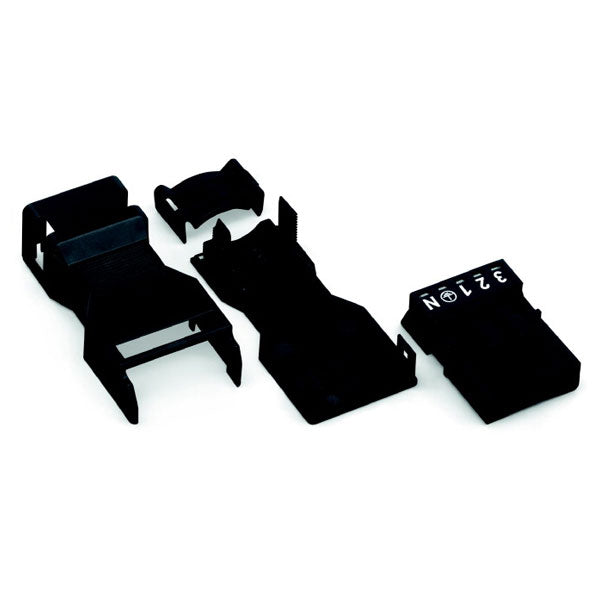

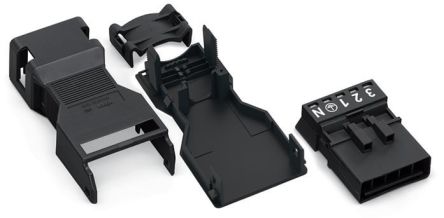

WAGO 890-115 — 5-Pole WINSTA® MINI Male Plug with Strain Relief

The WAGO 890-115 WINSTA® MINI 5-Pole Male Plug offers an efficient, tool-free power connection with integrated strain-relief housing. Designed for compact installations like grid and flush-mount lighting, it enables quick, reliable, and error-free wiring.

Key Features

• Push-in CAGE CLAMP®: Tool-free conductor connection (0.25–1.5 mm² solid or stranded).
• Strain Relief Housing: Secures cable diameters from 6.5 to 10.5 mm—adds stability and durability.
• Compact Design: 4.4 mm pitch, ideal for tight layouts such as modular lighting systems.
• High Current Capacity: Rated at 13 A (IEC) and up to 12 A (UL), suitable for general mains usage.
• IP40 Protection: Prevents solid object penetration larger than 1 mm, ensuring safety in installed setups.
• Mismating Protection: A-coded plug ensures safe and error-free assembly.

Technical Specifications

• Poles: 5
• Wire Gauge: 0.25–1.5 mm² (solid/stranded), supports ferrules.
• Cable OD: 6.5–10.5 mm with strain relief.
• Current/Voltage Ratings: 13 A / 400 V (IEC), 12 A / 600 V (UL).
• Dimensions (Mated): Width 26.7 mm × Height 15.8 mm × Depth 71.9 mm.
• Operating Temperature Range: –35 °C to +85 °C.
• Construction: Black polyamide housing (PA66), tin-plated copper alloy contacts, UL94 V-0 flame rating.
• Mating Cycles: ≥ 200 with retention force > 80 N when locked.

Ideal For

• Compact or recessed lighting systems
• Modular and grid-based installations
• Fast, tool-free wiring in professional environments
• Situations demanding secure, vibration-resistant connections

In the Box

• 1 × WAGO 890-115 5-Pole WINSTA® MINI Male Plug with Strain Relief Housing

Download Technical Documentation

📄 View datasheets, CAD files, and certifications on WAGO’s official site
