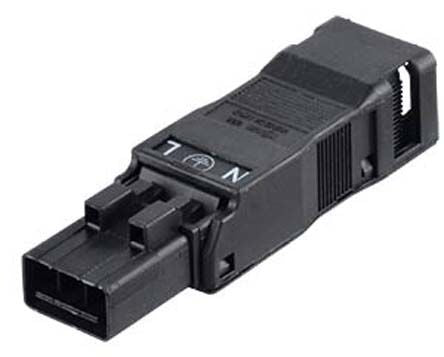

WAGO 890-113 — 3-Pole WINSTA® MINI Plug with Strain Relief, 16 A, Black

The WAGO 890-113 WINSTA® MINI Plug delivers a compact and reliable 3-pole cable connection solution for installations where space is tight. Featuring Push-in CAGE CLAMP® technology, a strain relief housing, and 16 A rating, it's a top choice for quick, secure electrical connections.

Key Features

• Push-in CAGE CLAMP® Connection: Instantly accepts solid (0.25–1.5 mm²) and fine-stranded conductors without tools, saving time on installations.

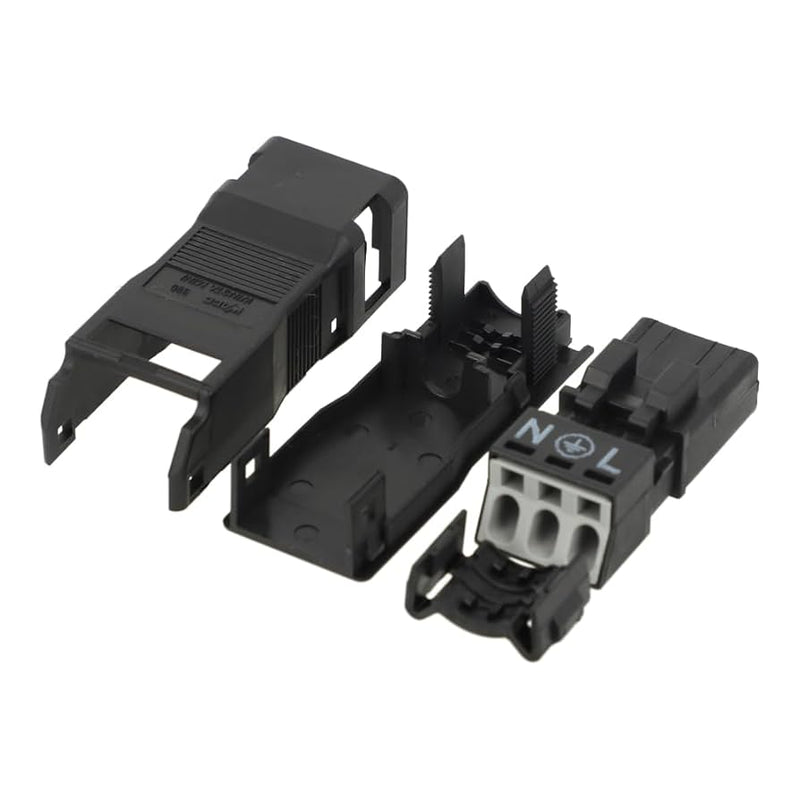

• Strain Relief Housing: Ensures cable retention and durability, compatible with 4.5–10 mm outer diameter cables.
• Compact WINSTA MINI Design: Ultra slim with 4.4 mm pitch—ideal for tight panel or lighting setups.
• Power Rating: 16 A / 250 V AC—perfect for general applications.
• Professional Build: Durable black polyamide body, reinforced with UL94V-0 rating for safety.

Technical Specifications

• Pole Configuration: 3-pole plug
• Conductor Size: Solid/fine-stranded from 0.25 to 1.5 mm² (22–16 AWG)
• Cable OD Range: 4.5–10 mm
• Coding: A—prevents mismating
• Operational Temperature: –5 °C to +40 °C
• Approvals: RoHS compliant, no SVHC, UL-rated materials
• Dimensions: Width ~17.9 mm, Height ~14 mm, Depth ~63.6 mm (mated)

Ideal For

• Lighting installations and tight-control cabinet wiring
• Modular systems requiring frequent maintenance or changes
• Quick DIY or professional panel work—no tools needed
• Safe and reliable plug-in electrical connections with strain protection

In the Box

• 1 × WAGO 890-113 WINSTA® MINI 3-Pole Plug with Strain Relief (Black)

Download Technical Documentation

📄 Access full datasheet, CAD files, and installation instructions
