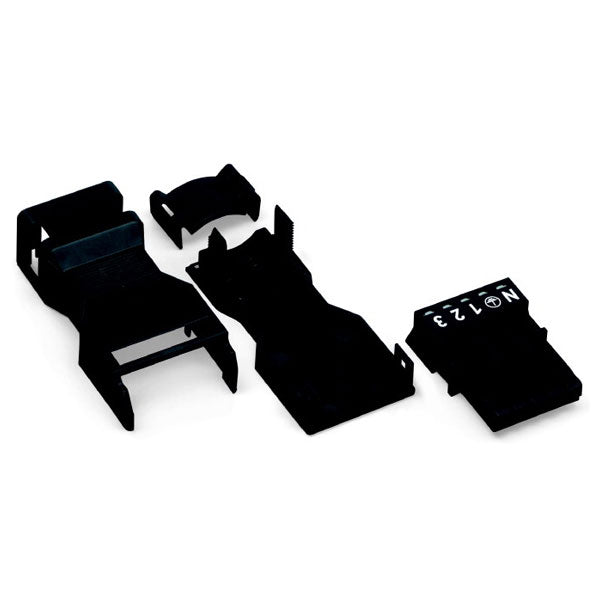

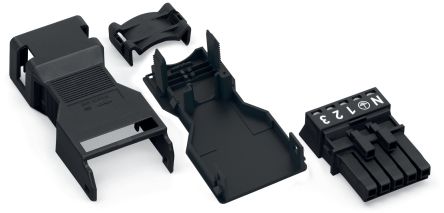

WAGO 890-105 — 5-Pole WINSTA® MINI Female Socket with Strain Relief

The WAGO 890-105 WINSTA® MINI Female Socket offers tool-free, reliable connections in compact electrical and lighting solutions. Its push-in CAGE CLAMP® wiring and integrated strain relief housing make it ideal for fast and secure installation.

Key Features

• Push-in CAGE CLAMP®: Easily accepts solid (0.25–1.5 mm²) and stranded conductors—no tools required
• Compact 4.4 mm pitch: Slim and efficient for tight panel or module layouts
• Strain relief housing: Secures cable (6.5–10.5 mm OD) and improves longevity
• High electrical rating: Up to 13 A at 400 V AC (IEC) and 12 A at 600 V (UL)
• IP40 protection: Safe against contact by large dust particles when installed

Specifications

• Pole Count: 5 female terminals
• Rated Current/Voltage: 13 A / 400 V IEC; 12 A / 600 V UL
• Wire Compatibility: 0.25–1.5 mm² solid or stranded (22–16 AWG), ferrules supported
• Pitch: 4.4 mm (0.173″)
• Dimensions: Width: 26.7 mm; Height: 15.8 mm; Depth: 71.9 mm when mated
• Operating Temp: –35 °C to +85 °C
• Housing: Black Polyamide (PA66), UL94 V-0 flame rating
• Mating Durability: >200 cycles; retention force >80 N when locked; unmating force ~20–70 N

Ideal For

• Compact lighting panel and track systems
• Modular assemblies requiring reliable, tool-free disconnects
• Rapid deployment environments—maintenance-free performance
• Tight installation areas where space is limited

In the Box

• 1 × WAGO 890-105 5-Pole Female Socket (cable mount) with Strain Relief

Download Technical Documentation

📄 Download datasheet, CAD files, and multilingual documentation
