WAGO 221-413 – 3-Way 32 A Compact Lever Connectors (Pack of 50)

The WAGO 221-413 Compact Lever Connector provides a fast, tool-free wire connection solution with lever-operated closures. Designed for solid, stranded, and fine-stranded conductors from 0.14 mm² up to 4 mm² (24–12 AWG), this 3-way connector is ideal for secure, reusable electrical splicing.

Key Features

• High Current Rating: Supports up to 32 A at 450 V for heavy-duty installations.
• Lever-Operated Clamping: Tool-free, durable connection with minimal operating force.
• Transparent Housing: Allows visual confirmation of proper wire insertion.
• Reusable Design: Test slots facilitate easy testing, even after installation.

Specifications

• Conductors Supported: 0.14–4 mm² (24–12 AWG), including ferrules.
• Poles: 3-way configuration
• Voltage Rating: 450 V
• Current Rating: 32 A

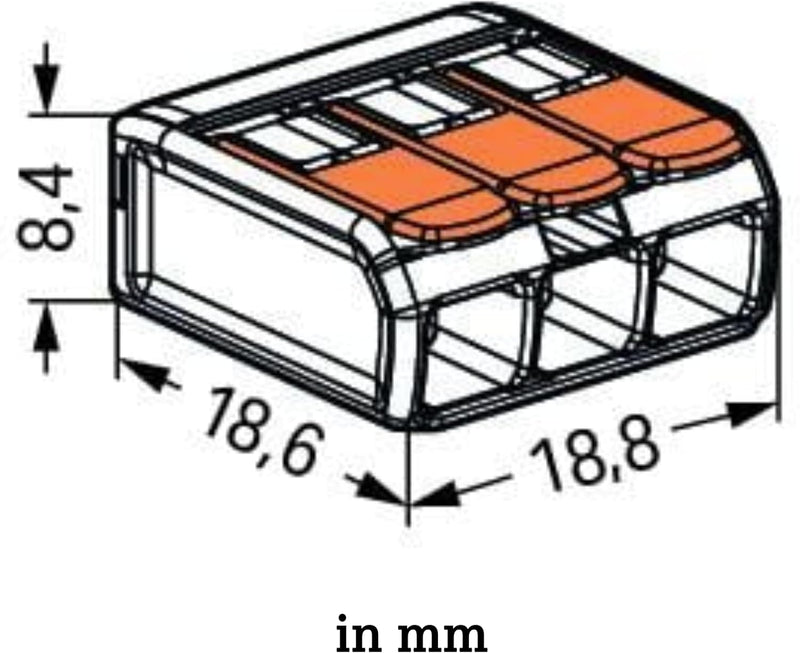

• Dimensions per Connector: Approx. 18.7 mm (W) × 8.3 mm (H) × 18.6 mm (D)
• Pack Quantity: 50 connectors

Ideal For

• Quick multi-wire junctions in motion-sensitive or compact spaces
• Electrical maintenance and temporary setups needing reliable, tool-free connections
• Circuit modifications and repairs where reuse may be necessary

In the Box

• 50 × WAGO 221-413 3-Way Compact Lever Connectors
