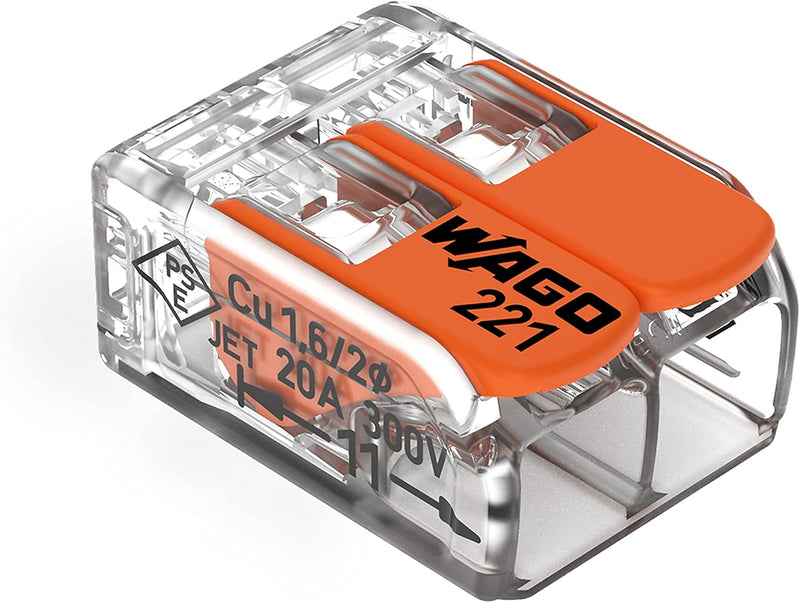

WAGO 221-412 — 2-Way 32 A Compact Lever Connectors (Pack of 100)

The WAGO 221-412 Compact Lever Connector offers quick, tool-free wiring for solid, stranded, and fine-stranded conductors ranging from 0.14 mm² to 4 mm² (24-12 AWG). With a robust 32 A, 450 V rating, it’s an excellent choice for secure and reusable electrical splicing—now available in a convenient 100-piece pack.

Key Features

• High load capacity: Rated for 32 A at 450 V AC per IEC, and 20 A at 600 V per UL.
• Tool-free lever connection: Pull up the bright orange lever, insert the wire, and close—done.
• Compact, space-saving design: Up to 40% smaller than traditional lever connectors, ideal for tight junction boxes.
• Visual confirmation: Transparent housing allows you to visually ensure correct insertion.
• Reusable and testable: Easily disconnect and reinsert wires; front and rear test points allow safe in-circuit testing.

Specifications

• Connector Type: 2-way compact lever connector
• Conductor Range: 0.14–4 mm² solid, stranded, or fine-stranded (24-12 AWG)
• Voltage / Current Rating: 450 V AC at 32 A (IEC), 600 V at 20 A (UL)
• Max Temp: 85 °C ambient rating (continuous), 105 °C peak

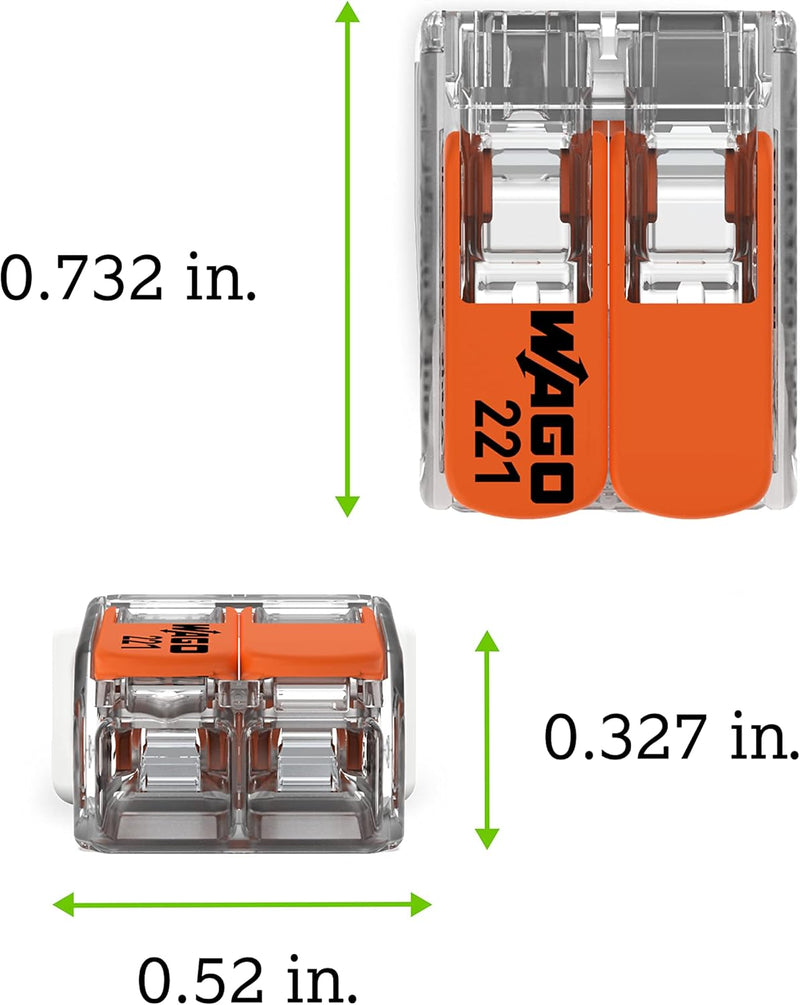

• Dimensions (per connector): ~13.2 mm × 8.4 mm × 18.6 mm (W × H × D)
• Housing: Transparent polycarbonate with orange lever

Ideal For

• Fast wire splicing in lighting, HVAC, or electrical systems
• Reusable connections in development, prototyping, or maintenance tasks
• Installations where compact form factor and visual verification are needed

In the Box

• 100 × WAGO 221-412 Compact Lever Connectors
