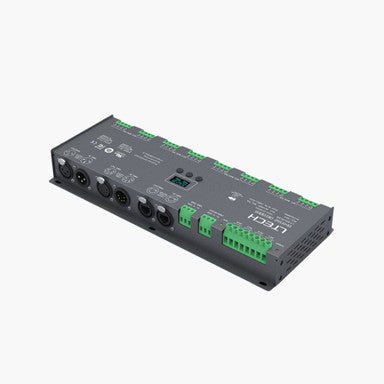

LTECH LT-924-OLED, 24 Channel 3A, 12-24V DC, DMX512 Decoder
Technical Specifications:
- Input signal: DMX512
- Voltage: 12V~24V DC
- Output: Constant Voltage
- Channels: 24
- Current: 3A ×24CH 72A Max
- Max output power: 864W/1728W(12V/24V)

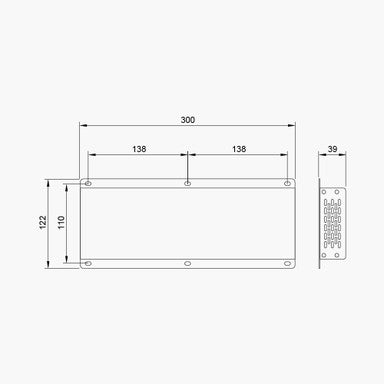

- Dimensions (mm): 300L x 122W x 39H
- Guarantee: 5 Years
This 24-channel DMX decoder is ideal for controlling RGBCCT, RGBW, RGB, CCT adjustable, and single-color LED strips. It allows multiple DMX channels to be assigned to one address, increasing power capacity per address and reducing the number of addresses needed.

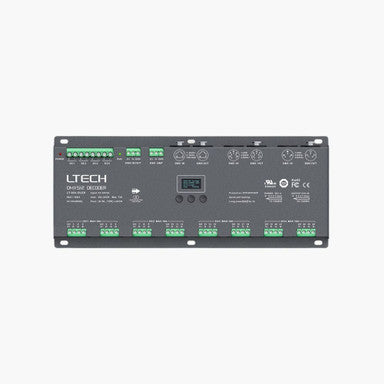

With dimming options (standard, linear, LOG, custom 0.1-9.9) and adjustable 8-bit (256 levels) or 16-bit (65536 levels) increments, it ensures precise lighting control. The OLED screen and touch buttons make setup easy, with DMX connections via XLR-3, XLR-5, RJ45, or screw terminals.
Operating on a 12-24V DC circuit, it supports up to 864W of 12V or 1728W of 24V LED lighting, depending on the LED driver. A DMX signal amplifier is built in, and an LED driver is required to power the LEDs.
