Going Dark - 24V 5-in-1 RGBCwWw LED Strip - 5m
5-in-1 5050 LEDs · 60 LEDs/m · Cut every 100 mm · 5 m reel · Professional theatre & live events
True 5-channel colour: RGB + 6500K White + 2500K Warm White in a single 5050 package for seamless on-camera and audience-facing looks.
24V architecture for longer runs, lower voltage drop, and smoother fades on show control.
Cut every 100 mm (6 LEDs) to land cleanly on set piece dimensions.
Pre-soldered 250 mm tails for rapid deployment—no bench time on site.

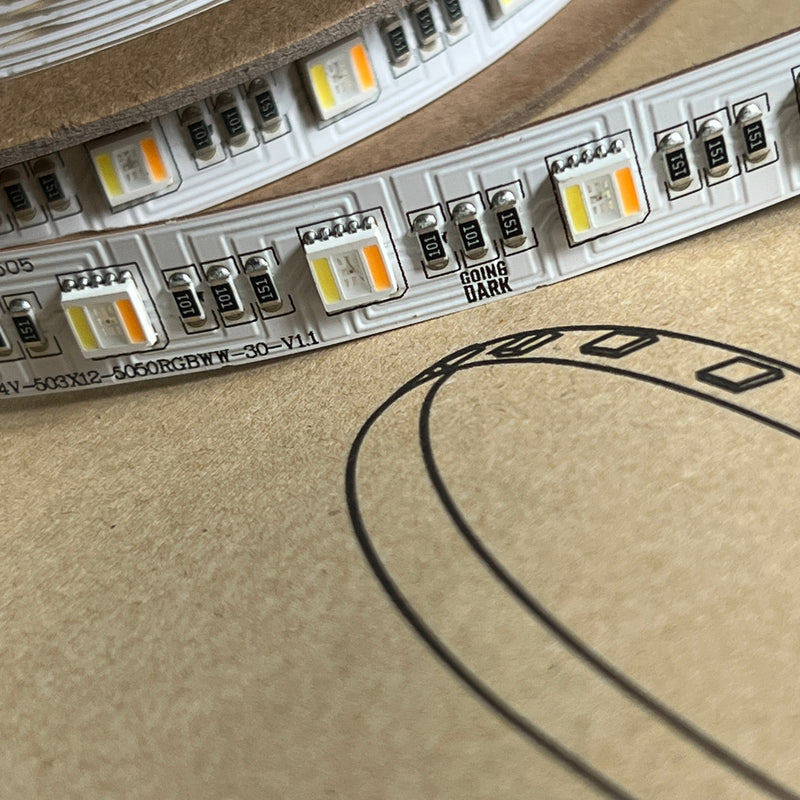

Neutral white 12 mm PCB suited to scenic integration.

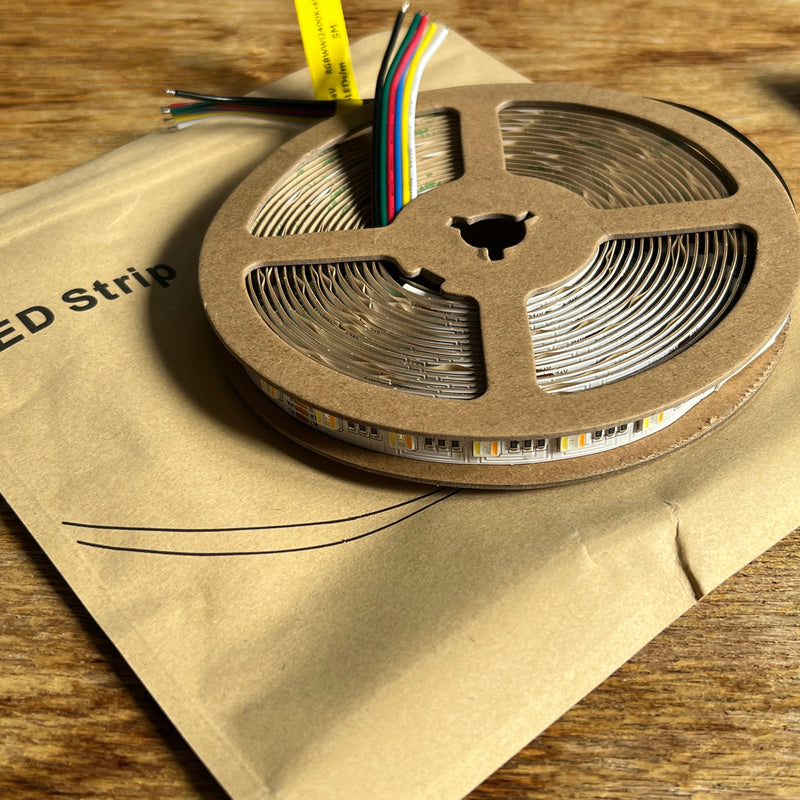

Eco Packaging
Every reel is supplied in eco-friendly packaging: a recyclable paper sleeve and cardboard reel. No single-use plastics, no excess waste — just packaging that protects your product and the planet.
- 100% recyclable sleeve and reel
- Flat-pack friendly for efficient storage
- Professional look that’s theatre-ready straight out of the box
Key Specs
| Model | S012060CC5PZ — IP20 (with 250 mm tails) |
| LED Package | SMD 5050 5-in-1 (RGB + W + WW) |
| Voltage | DC 24V |
| LED Density | 60 LEDs/m |
| Max Power | 26 W/m (all channels driven; see note) |
| Colours / CCT | RGB + 6500K White + 2500K Warm White |
| Wavelengths | R: 620–625 nm · G: 520–525 nm · B: 460–465 nm |
| Luminous Output (per m) | R: 102 lm · G: 270 lm · B: 79 lm · W: 288 lm · WW: 260 lm |
| Beam Angle | 120° |
| PCB Width | 12 mm (white) |
| Cut Length | 100 mm (6 LEDs) |
| Reel Length | 5 m |
| Ingress Protection | IP20 (indoor use) |
| Operating Temp | −25 °C to +60 °C |
| Control | PWM dimming; requires 5 channels (RGB + W + WW) |
Power & Control Notes
- Plan PSU capacity at 26 W/m worst case (all channels full). A full 5 m reel can draw up to ~130 W—allow headroom.
- Not recommended to drive all five channels at 100% simultaneously for extended periods, as this can overheat the copper PCB.
- Use a 5-channel controller (RGB + W + WW). PWM compatible.
- Observe correct polarity: the black wire is +24V common.
What’s in the box
- 1 × 5 m reel, IP20
- Factory-fitted 250 mm input tails
Recommended accessories
- 24V constant-voltage power supply (sized per run length)
- 5-channel PWM controller / dimmer (RGB + W + WW)
- Mounting clips or profile as required
Installation Guidance
- Cut only on the marked pads (every 100 mm).
- Observe minimum bend radius; avoid twisting or bending across LED components.
- Derate current for longer runs; feed from both ends for even brightness on lengths >5 m.
Typical applications
Stage edges, set pieces, coves, architectural accents, audience-safe eye-lines, and any install demanding precise white balance alongside saturated colour.
FAQ
Can I run a full 5 m from one end?
Yes, but for best uniformity on full-power looks, power-inject or feed both ends—especially when using white channels at high output.
Which controller do I need?
Any 5-channel constant-voltage PWM controller (RGB + W + WW). DMX/Art-Net nodes with 5 CV outputs are ideal for theatre.
Is this suitable for outdoor?
This listing is for IP20 (indoor). For splash-resistance, choose an IP65/IP67 variant.
What tails are included?
Factory-fitted 250 mm tails for rapid connection onsite.
