Instagrid LINK MAX 400V Three-Phase Portable Power System – 11kW / 54kW Peak
The Instagrid LINK MAX transforms three compatible Instagrid ONE units into a powerful, portable 400V three-phase power supply. Delivering 11kW rated output power and up to an incredible 54kW peak power, LINK MAX brings serious three-phase capability to locations where conventional mains power or a generator may not be practical.
Designed for professional live events, film, television, production and mobile infrastructure, LINK MAX provides a compact alternative for applications traditionally dependent on larger three-phase generators.
For the entertainment industry, this opens up particularly useful applications including three-phase chain hoists, stage structures, truss systems and other 400V equipment, allowing three-phase power to be taken directly to where it is required.
Portable 400V Three-Phase Power

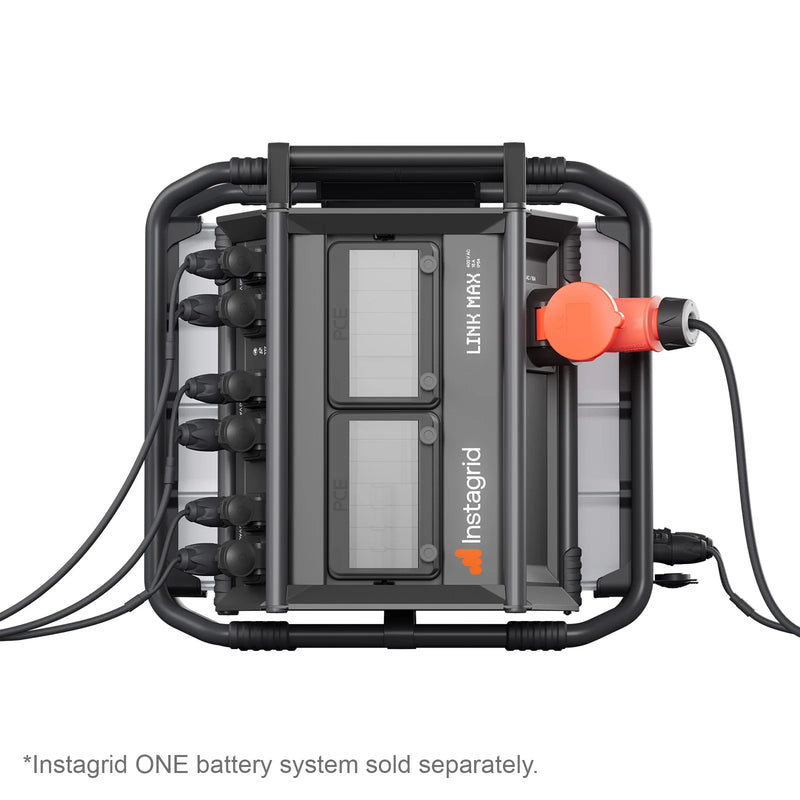

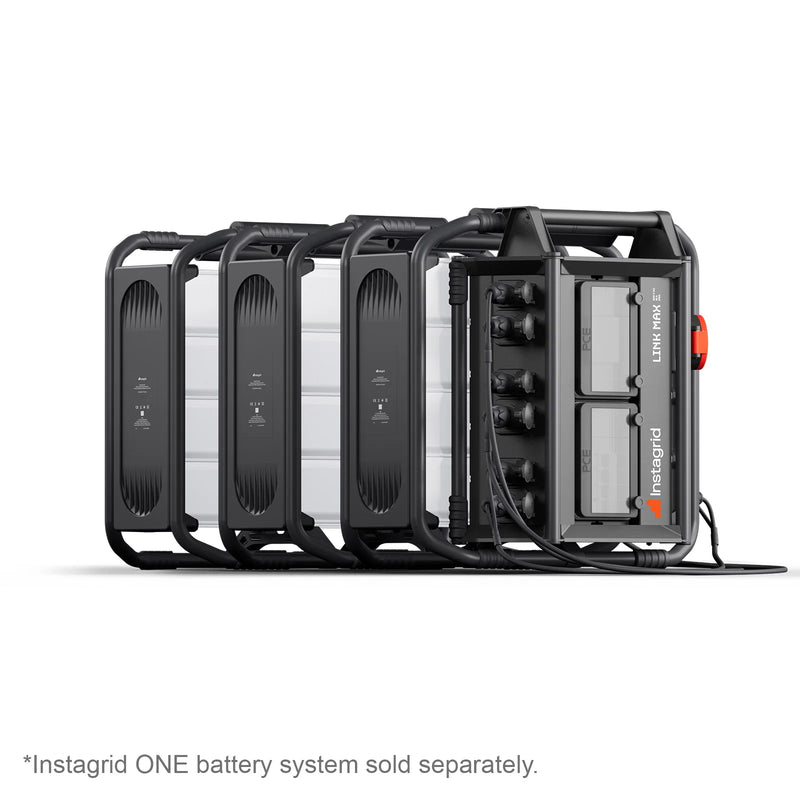

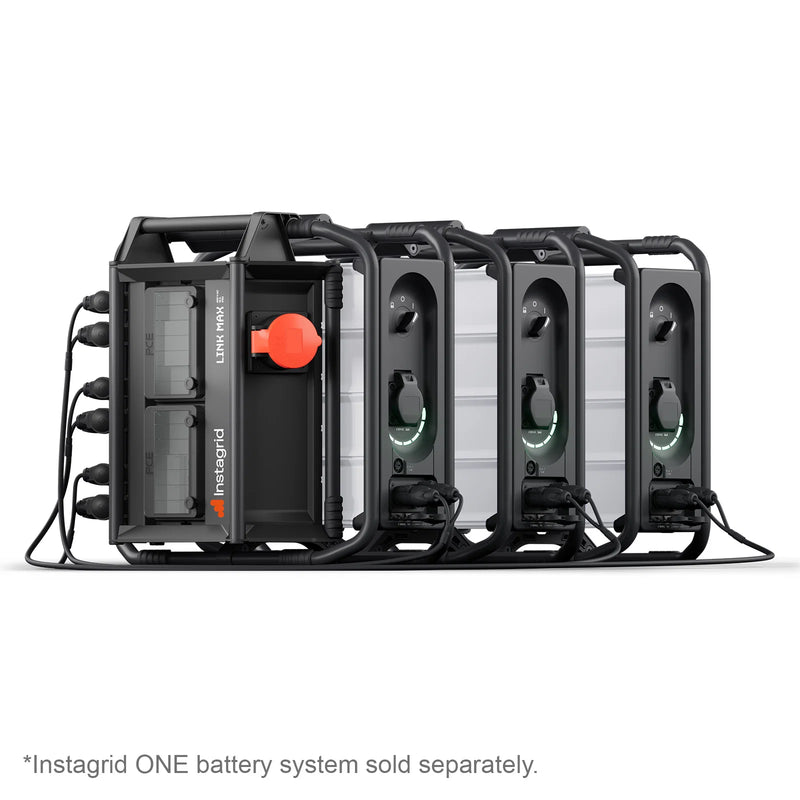

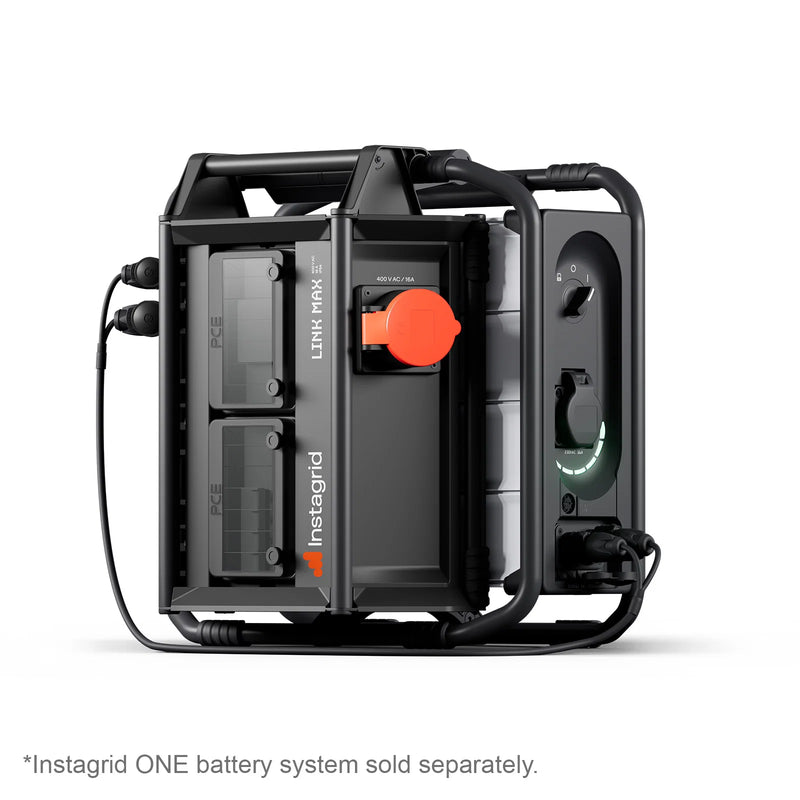

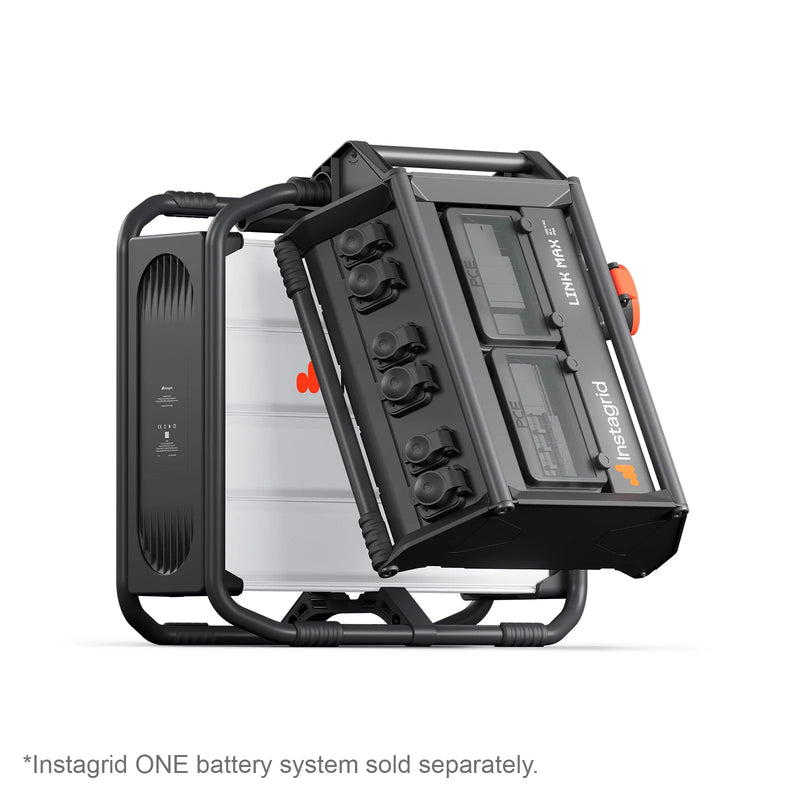

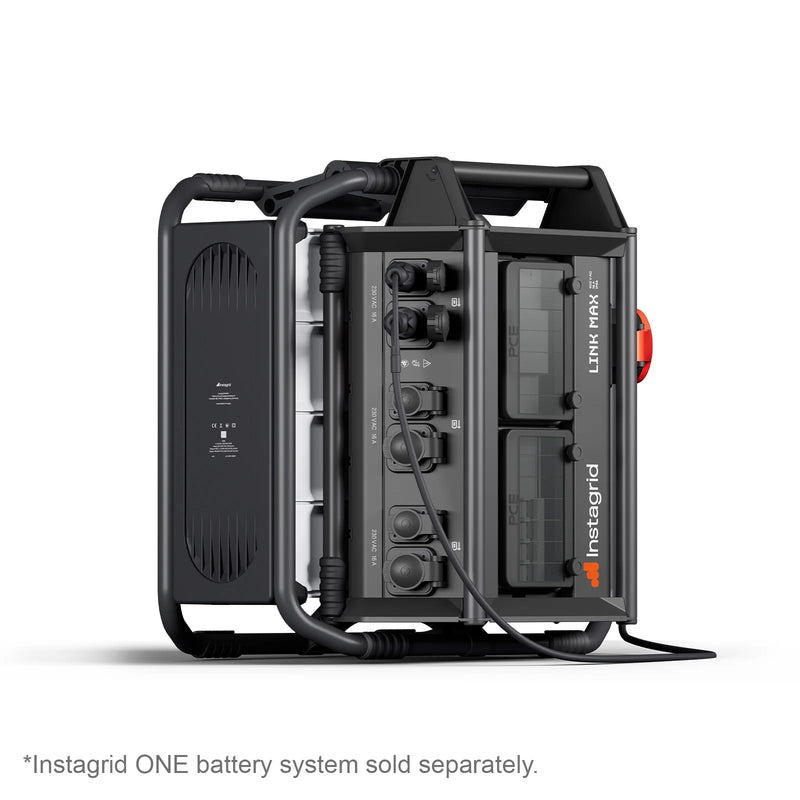

Connect three compatible Instagrid ONE units to the LINK MAX to create a 400V AC, 16A three-phase power source.

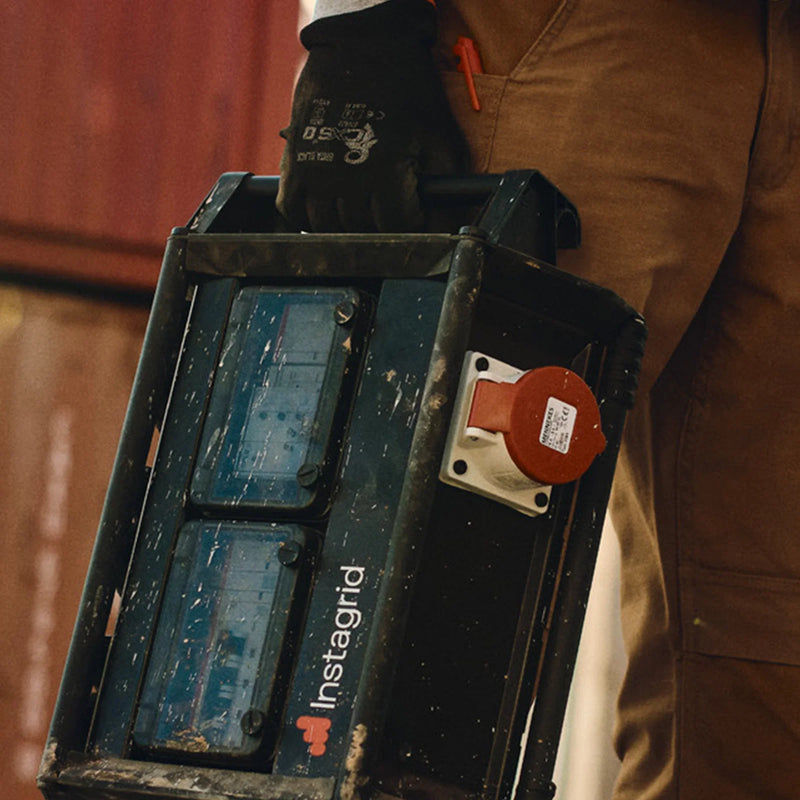

The LINK MAX itself weighs just 5.1kg, while the complete system of three Instagrid ONE units and LINK MAX weighs approximately 65kg. Because the system is modular, each component can be carried individually rather than requiring machinery to move a conventional generator or large battery system.
11kW Continuous / 54kW Peak Power
The Instagrid LINK MAX provides 11,000W rated output power with an exceptional 54,000W peak output, allowing it to handle demanding professional three-phase equipment and high startup currents.
- Rated Output: 11,000W
- Rated Current: 16A
- Output Voltage: 400V AC Three Phase
- Frequency: 50Hz
- Peak Output: 54,000W
Key Features
- Creates a portable 400V three-phase power supply
- Designed for use with three compatible Instagrid ONE units
- 11kW rated output power
- Up to 54kW peak power
- 400V AC / 50Hz output
- 16A rated output current

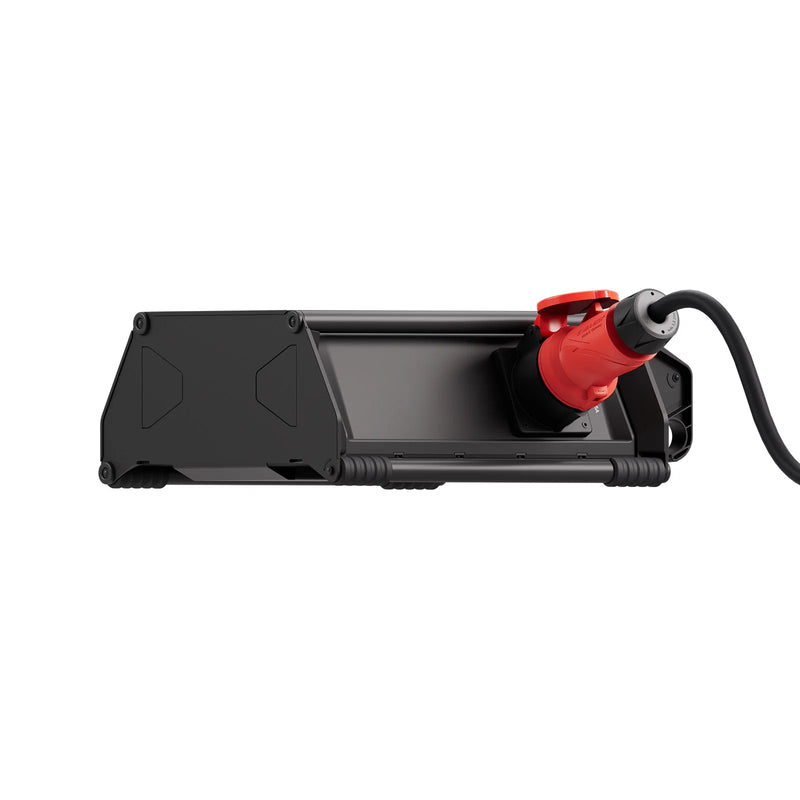

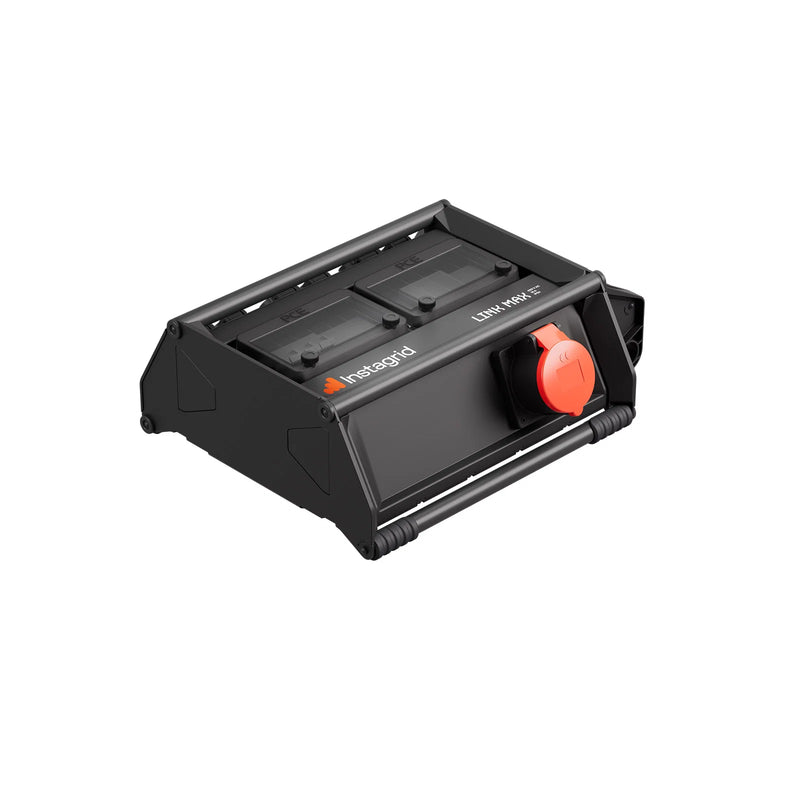

- CEE 5-pole 6h 16A 400V output

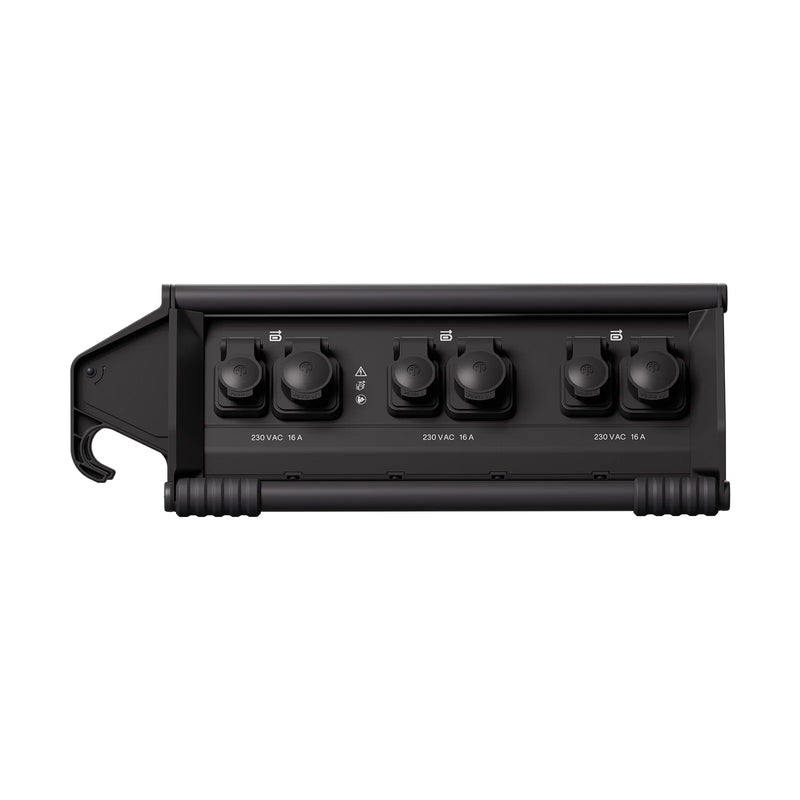

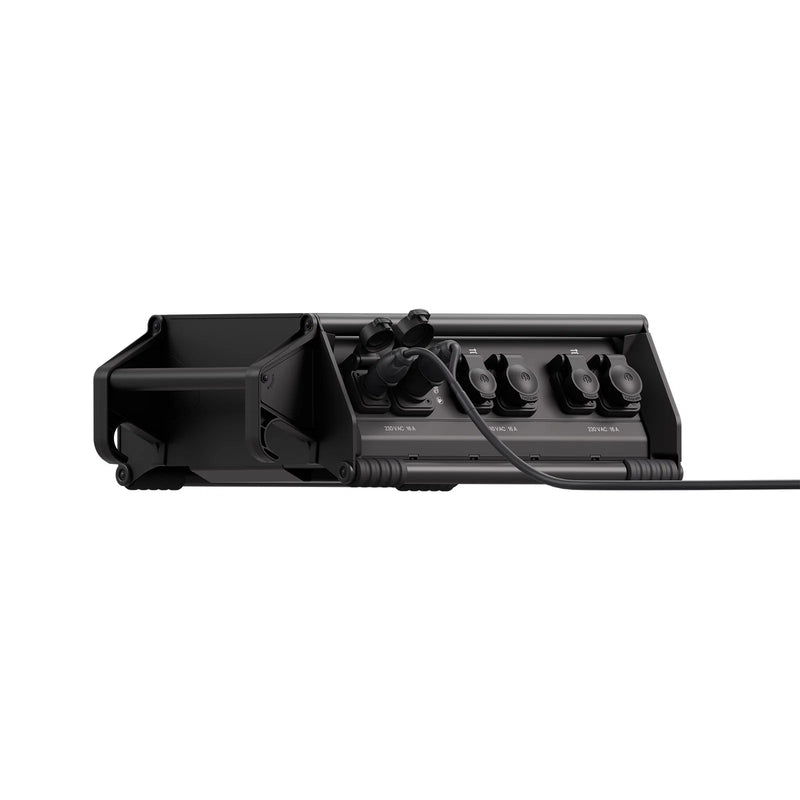

- Three Neutrik powerCON TRUE1 TOP® dual inputs
- Plug-and-play, tool-free setup
- Built-in MCB, insulation monitoring and phase monitoring
- IP54 rated

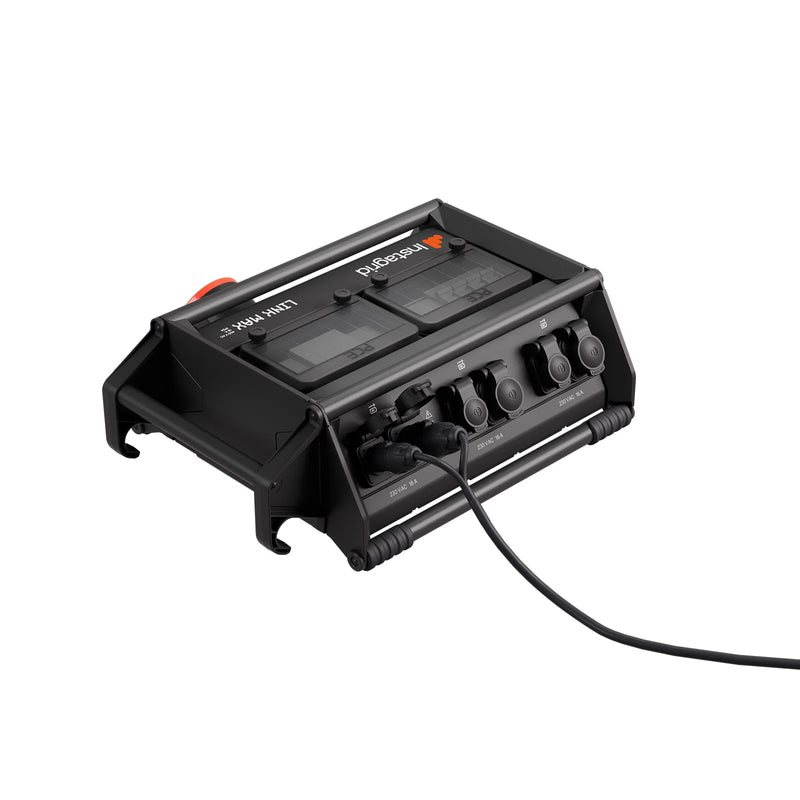

- Compact 5.1kg LINK MAX unit
- Three dual Neutrik connection cables included
Perfect For
- Theatre and live events
- Touring productions
- Film and television production
- Production electricians
- Rigging departments
- Chain hoist systems
- Truss and stage structures
- Location production
- Mobile infrastructure
- Temporary 400V power requirements
Technical Specifications
- Brand: Instagrid
- Model: LINK MAX
- Product Type: Portable Three-Phase Power System
- Compatible With: 3 × Compatible Instagrid ONE Units Only
- Nominal Output Voltage: 400V AC
- Phase: Three Phase
- Frequency: 50Hz
- Rated Output Current: 16A
- Rated Output Power: 11,000W
- Peak Power: 54,000W
- Output: 1 × CEE 5-Pole 6h 400V / 16A
- Inputs: 3 × Neutrik powerCON TRUE1 TOP® Dual Input
- Protection: MCB, IMD & PMD
- Circuit Breaker: 1 × 4-Pole C16
- IP Rating: IP54
- Protection Class: Class I with Class II Construction
- Dimensions: 391 × 320 × 140mm
- Weight: 5.1kg
- Country of Origin: Germany

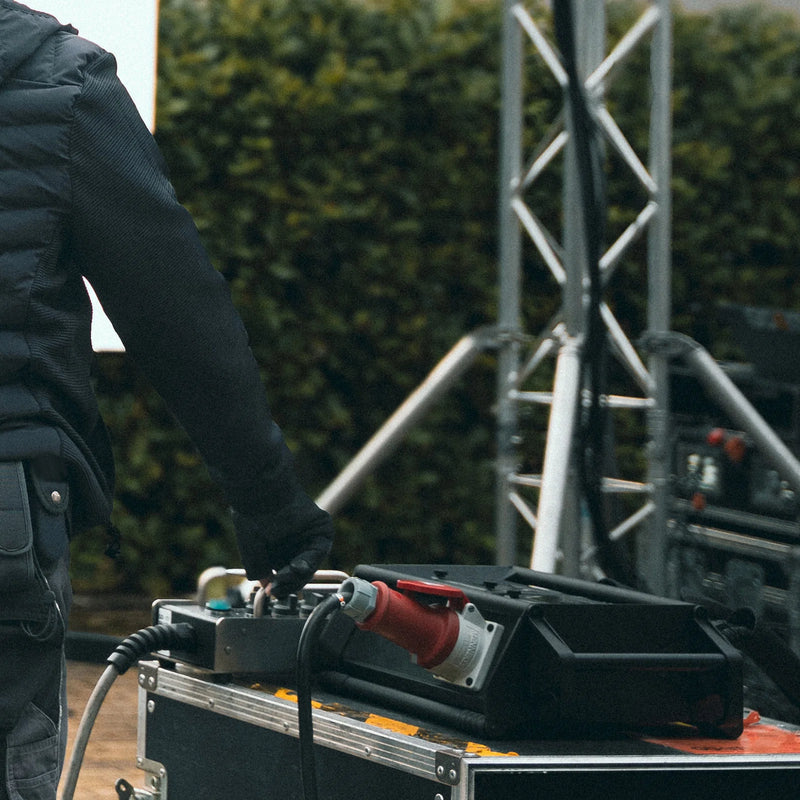

Built for Live Production
LINK MAX is particularly useful for productions that need temporary three-phase power without installing lengthy cable runs or positioning a conventional generator nearby.
The modular design means each Instagrid ONE can be carried separately before the complete system is assembled at the point where power is required. This makes it particularly attractive for temporary stages, event sites, film locations and other areas where access can be difficult.
What's Included?
- 1 × Instagrid LINK MAX
- 3 × Dual Neutrik Connection Cables
Please Note: Three compatible Instagrid ONE portable power supplies are required for operation and are not included with the LINK MAX.
Instagrid LINK MAX combines three Instagrid ONE units to create a compact 400V three-phase power system delivering 11kW rated output and up to 54kW peak power – ideal for professional live events, touring, film, television and mobile production environments.
